About this item
- Terminal Number: 2 Terminals; Contact Material: Brass with silver plating; Net Weight: 103g; Opening size: 16mm / 0.63″
- Color: Silver Tone,Black; Qualification: CE; Model: DF16
- Contact Resistance: <0.01ohm; Insulation Resistance:>2000Mohm; Temperature Range: -25~80C
- Size: 16mm 2P 7A 125V; Total Size: 35.7 x 17.8mm / 1.41″ x 0.7″ (L*D); Rated Current: 7A
- Fit Terminal Diameter: 3mm / 0.12″; The Wire Hole Diameter: 5mm / 0.2″; Rated Voltage: 125V
Description:
Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipment.
Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.
Waterproof and really a great apparatus electronic Connector.

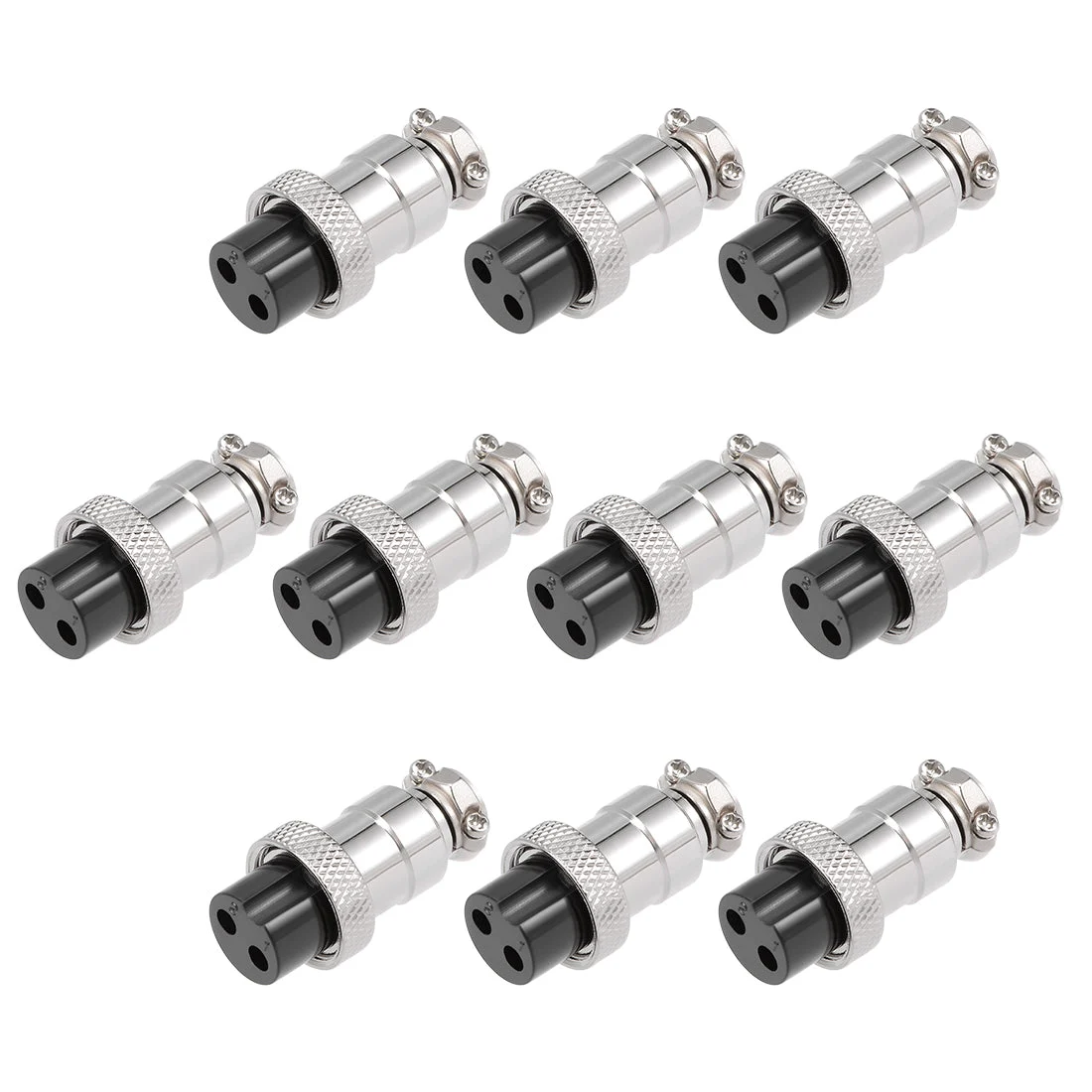

Product Name:Aviation Connector
Model: DF16
Terminal Number: 2 Terminals
Thread Dia: 16mm/0.63inch
Rated Voltage:125V
Rated Current: 7A
Net Weight:103g
Coupling: Thread Coupling
Shell Material: Zinc alloy with chrome plating
Contact Material: Brass with gold plating
Color: Silver Tone,Black
Contact Resistance: <0.01ohm
Insulation Resistance:>2000Mohm
Temperature Range: -25~80C
Qualification: CE
Package Include:
Package Content: 10 x Aviation Connector
