About this item
- Model:WH148;Single potentiometer, linear diversify of resistance
- Resistance Value: 5K ohm Tolerance:+/-20%,Screw Thread Dia: 6.7mm/0.26 inch
- Main used to control electrical devices such as volume controls on audio equipment，Amplifier and so on .
- Long life, soft touch, with soft center positioning
- Knurled shaft with split design for push-on knob.this item include Knob easy for you to use
Description:
Top adjustment type and knurled shaft for easy operate in daily use.
Main used to control electrical devices such as volume controls on audio equipment.
Knurled shaft with split design for push-on knob.this item include Knob easy for you to use
Features:

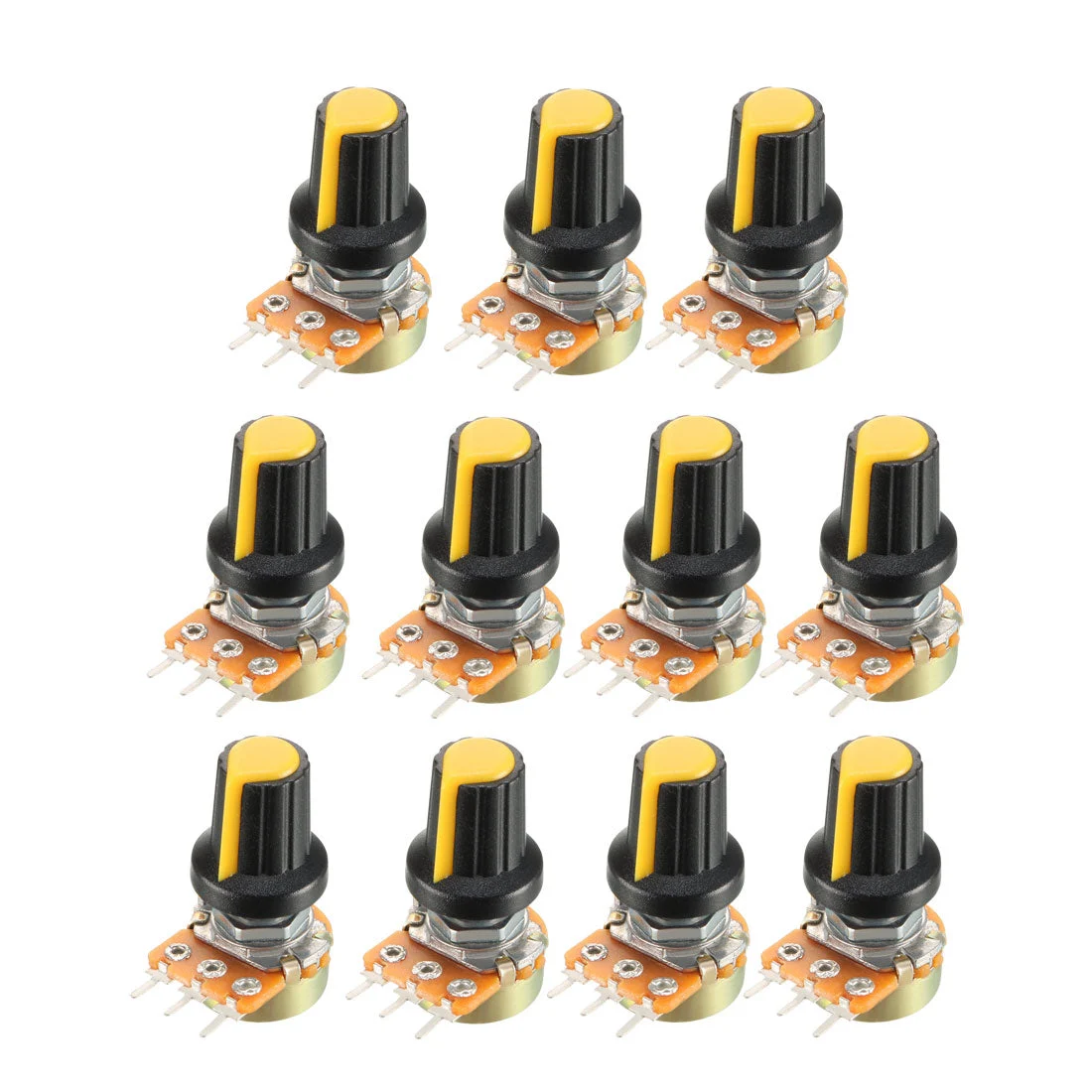

Product Name: Carbon Film Potentiometer
Material: Carbon film Metal
Turn Number: Single Turn
Tolerance: +/-20%
Terminals Number: 3
Features: Round Shaft
Model: WH148
Resistance Value: 5K ohm
Shaft Diameter: 6mm/0.24 inch
Shaft Length(do not include the Screw Thread parts): 13.8mm/0.54 inch
Total Length: 29mm/1.14 inch
Screw Thread Dia: 6.7mm/0.26 inch
Knob Size: 17 x 15.7mm/0.67 x 0.62 inch (L*D)
Package Content:
11Pcs x Carbon Film Potentiometer
11Pcs x Plastic Knobs
