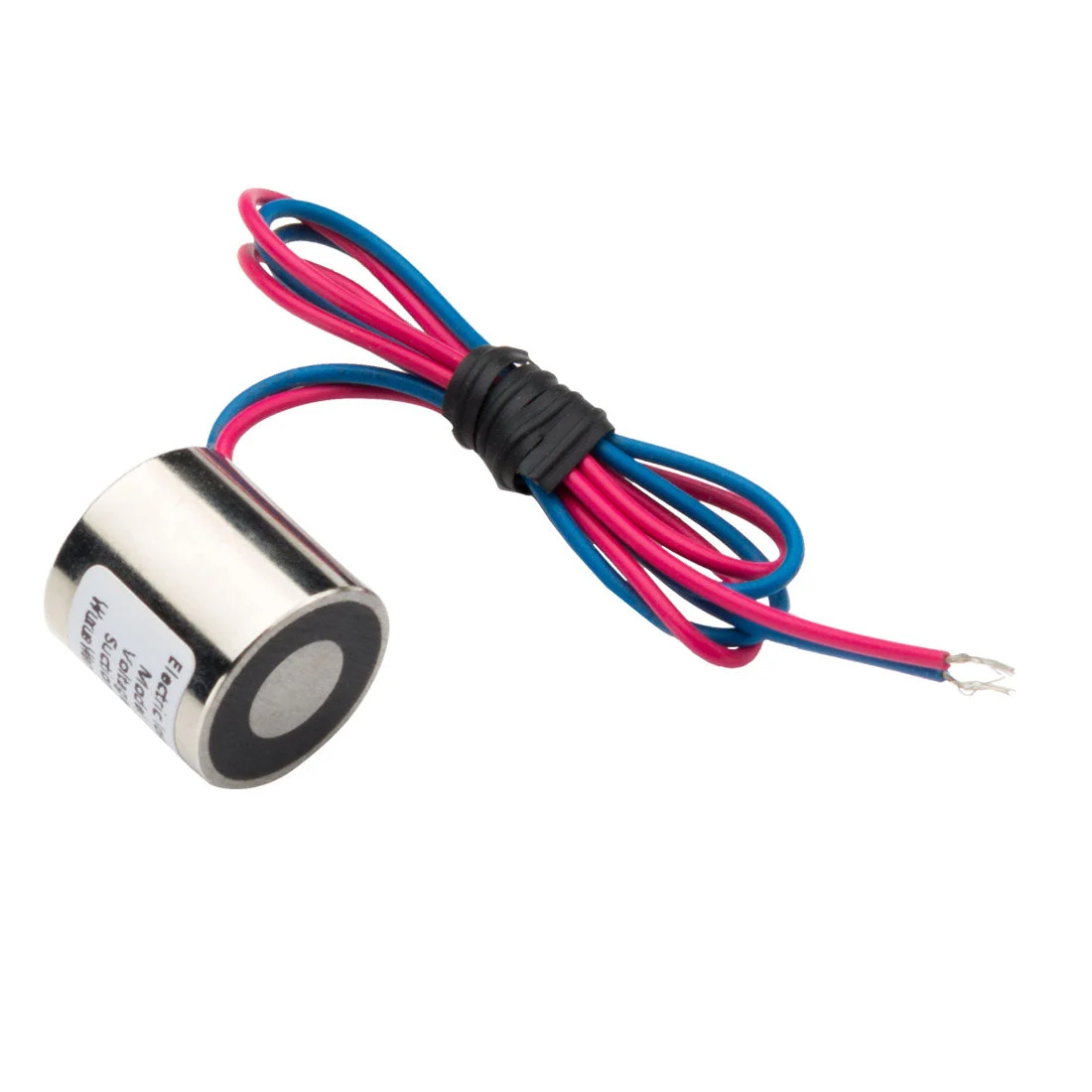

12V DC 20N Electric Lifting Magnet Electromagnet Solenoid Lift Holding Waterproof

About this item

• Input Voltage: 12V DC; Peak Force :20N Holding Force : 15N Duty-cycle (ED%) : 50%; Electric time:Less than 7 minutes ;; Thread Size : M4*7; Material: Pure Iron
• Overall Size : 15 x 15 mm /0.6 x 0.6 inch(Dia. *T) ;Lead Length : 24cm/9. 5 inch
• Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market
• Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
• Use PA66GF30 nylon plastic for framework; high temperature resistance

Feature:

Electric lifting magnet

Powerful and compact

Smooth and flat surface

Low consumption and reliable

Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note:The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.

It is recommended that the actual force is less than 80% of the sucked force  on the name plate.

Specification:Material: Metal

Input Voltage: 12V DC

Peak Force :20N

Holding Force : 15N

Duty-cycle (ED%) : 50%;

Electric time:Less than 7 minutes ;

Overall Size : 15 x 15 mm /0.6 x 0.6 inch(Dia. *T)

Thread DIA : 3mm

Lead Length : 24cm/9. 5 inch

Package Includes:

1 x Holding Electromagnet
