About this item

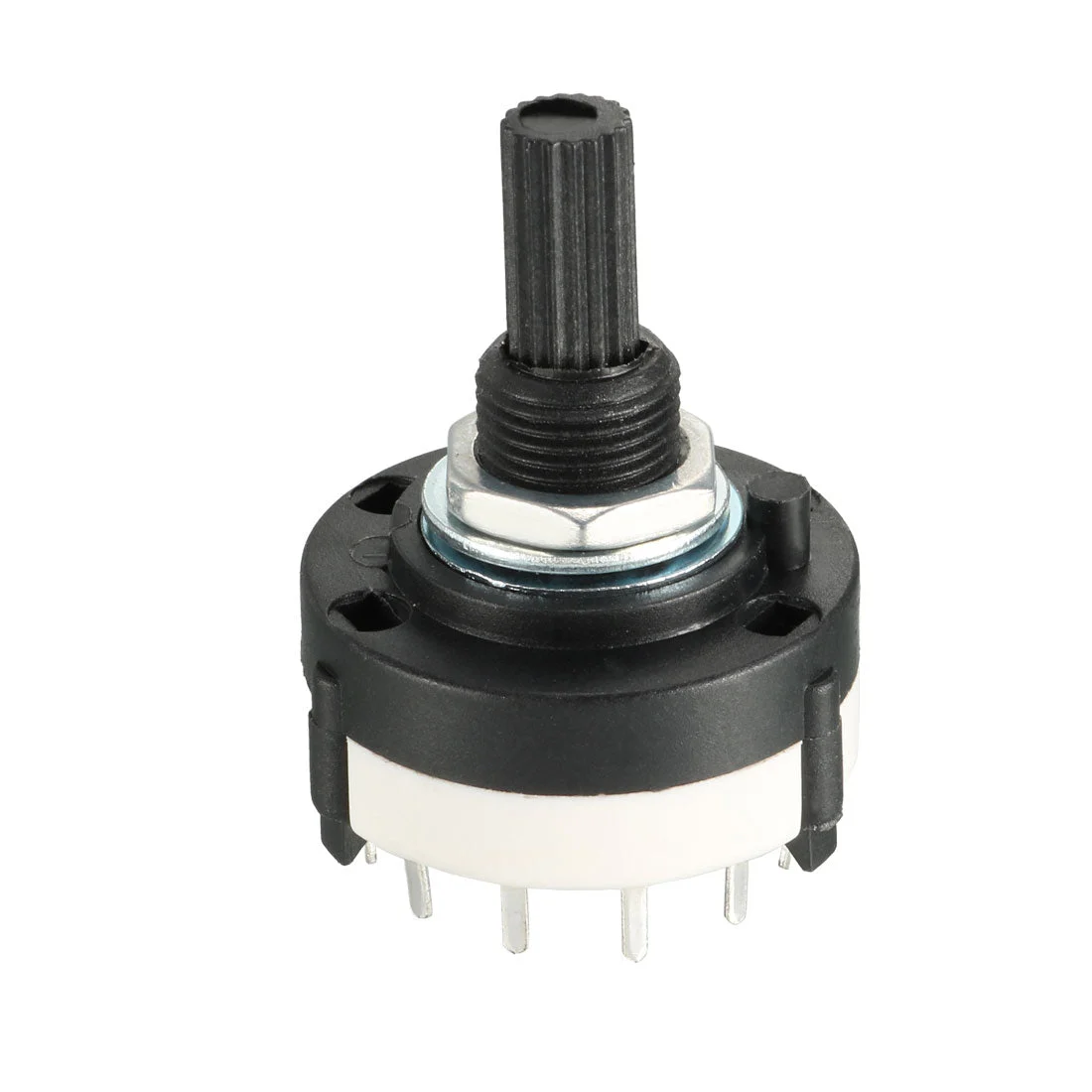

- Product Name : Band Selector Rotary Switch
- Contact Type : 1 Pole 12 Position,1Deck
- Fit Mounting Hole Diameter: 9mm / 0.35″ ; Pin Number : 13
- Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 11.3mm/ 0.44″
- Widely used on radio, TV, industrial machine control unit, or other electronic devices.
Description:
- 1 Pole 12 Position design, plastic metal material, easily turned.
- Widely used on radio, TV, industrial machine control unit, or other electronic devices.
Specification:
- Product Name : Band Selector Rotary Switch
- Package Content : 1Pcs x Rotary Switch
- Model : RS26 1*12
- Material : Metal, Plastic
- Contact Type : 1 Pole 12 Position,1Deck
- Pin Number : 13
- Fit Mounting Hole Diameter: 9mm / 0.35″
- Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 11.3mm/ 0.44″
- Dimensions : 38 x 26.5mm / 1.5″ x 1.04″(Max.H*W)
