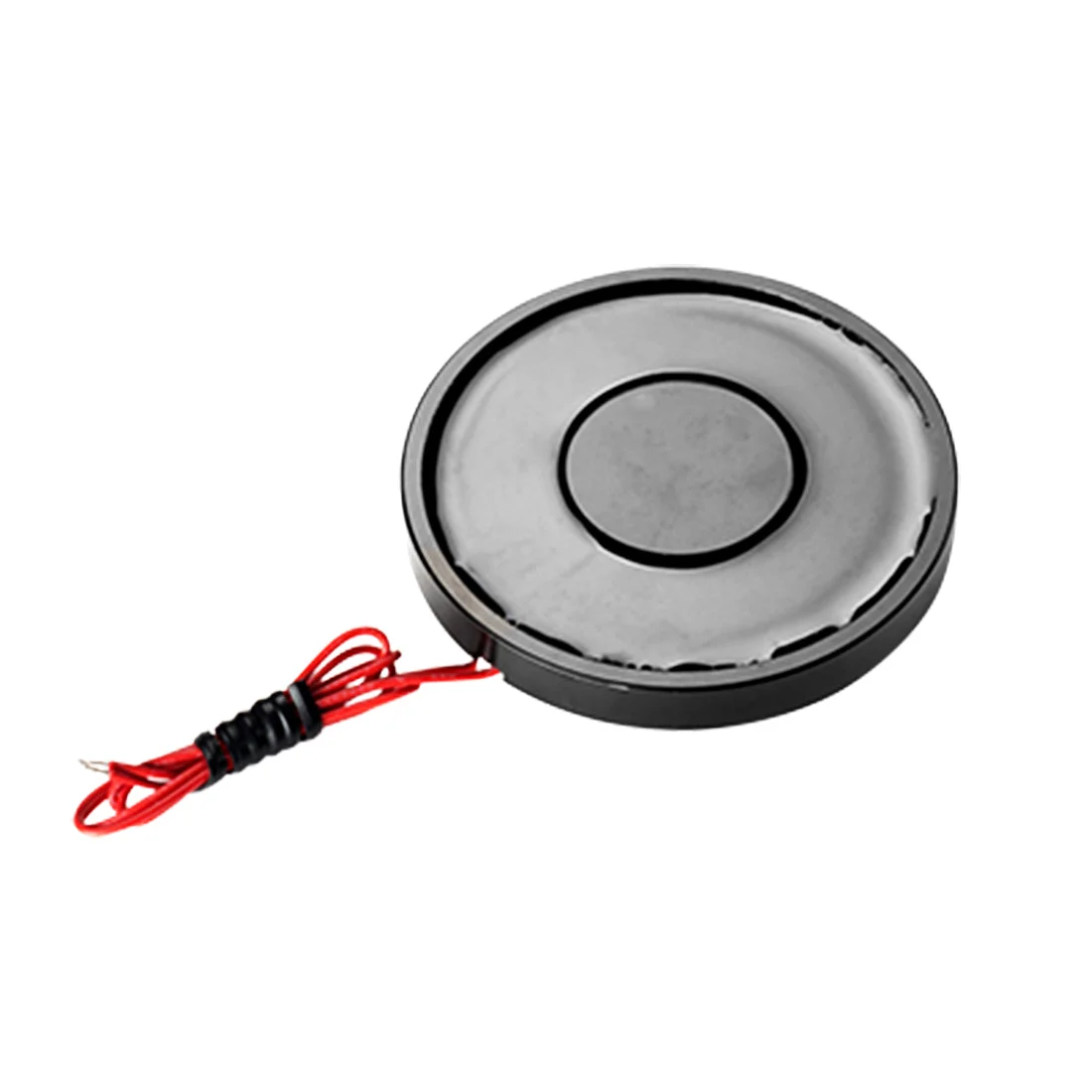

200N Electric Lifting Magnet Electromagnet Solenoid Lift Holding 12V DC

About this item

• Input Voltage: 12V DC; Peak Force :200N Holding Force : 150N Duty-cycle (ED%) : 50%; Duration time:Less than 7 minutes ; Thread DIA : M5*5; Material: Pure Iron
• Overall Size : 70 x 8 mm /2.8 x 0.3 inch(Dia. *T); Lead Length : 24cm/9. 5 inch
• Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market
• Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
• Use PA66GF30 nylon plastic for framework; high temperature resistance

Feature:
Electric lifting magnet
Powerful and compact
Smooth and flat surface
Low consumption and reliable
Applications: assembly line, sorting machine, mechanical arm, experimental facility, etcNote:The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.
It is recommended that the actual force is less than 80% of the sucked force  on the name plate.

Specification:
Material: Pure Iron
Input Voltage: 12V DC
Peak Force :200N
Holding Force : 150N
Duty-cycle (ED%) : 50%;
Duration time:Less than 7 minutes ;
Overall Size : 70 x 8 mm /2.8 x 0.3 inch(Dia. *T)
Thread Size : M5*5
Lead Length : 24cm/9. 5 inch
Lead Color: Red / Blue(Random)

Cautions for the use of electromagnets:
1.The object absorbed must be a good magnetic material.
2.The suction surface of the electromagnet must be smooth and clean.
3.The thickness of the object is 5mm best.
4.The contact surface of the object must be larger than the adsorption surface of the electromagnet

Package Includes:
1 x Holding Electromagnet
