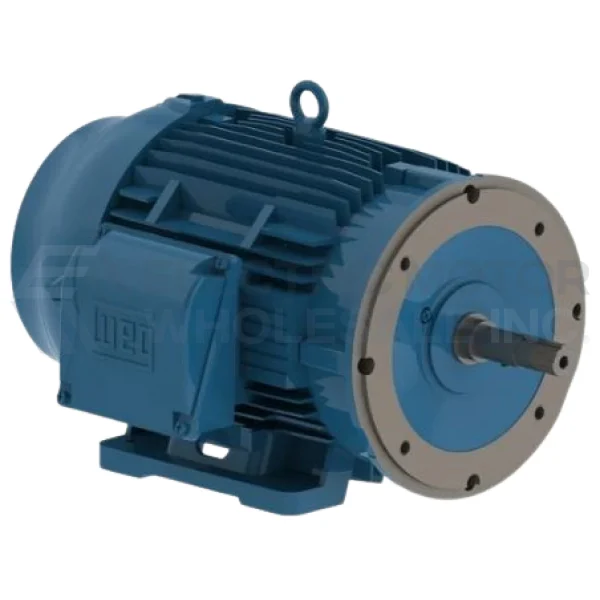

WEG Three Phase JM Pump Motor designed for high performance with maximum energy efficiency. High efficiency and low cost of ownership throughout the entire motor lifetime is the basis of the Weg W22 model. The W22 platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.
Features:
- Inverter Rated 1000:1 VT
- NEMA Premium efficiency rating
- Durable cast iron frame
- 50/60Hz rated (same HP at 50Hz with a 1.0 SF)
- Class F insulation (Impregnation resin and magnet wire are class H)
- F1 mounted (cast iron frames are F2 convertible)
- Stainless steel nameplate – laser etched with high contrast background
- Regreasable ball bearings
- Gasketed conduit box
- Class 1 Div. 2 Groups A, B, C, D – T3
- Class 2 Div. 2 Groups F, G – T3C
- 1.25 Service Factor
- Optimized ventilation system for cooler operation and reduced noise level
- Solid base for reduced vibration levels
- NPT threaded terminal box
Specifications
|
Brand: |
WEG |
|
Application: |
Closed Coupled |
|
Output HP: |
20//15 |
|
Output KW: |
15//11.2 |
|
Output RPM: |
1175//980 |
|
Frame Size NEMA: |
284/6JM |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
230/460//380 |
