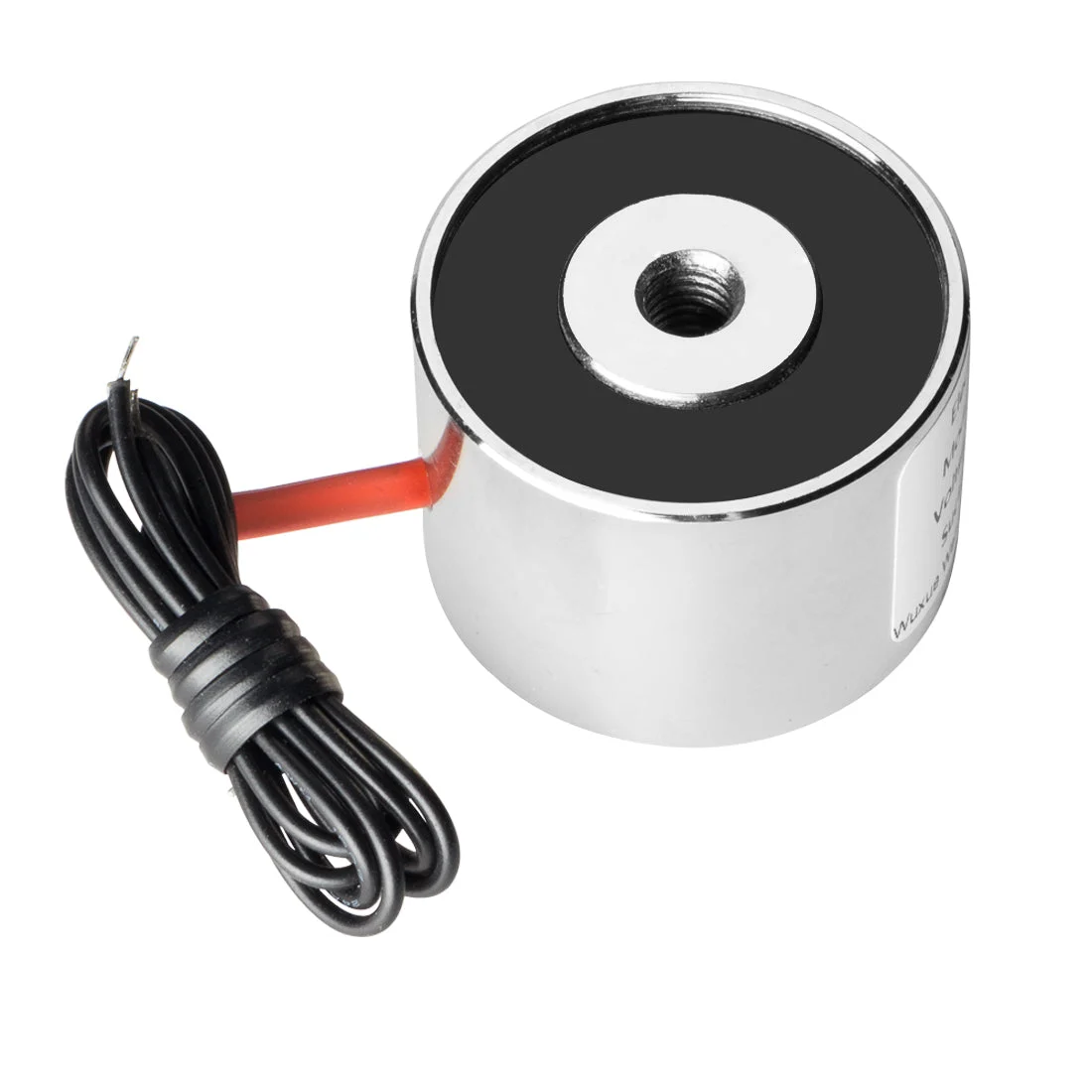

24V DC 200N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

About this item

• Input Voltage: 24V DC; Peak Force :200N; Holding Force : 150N; Thread size : M6*25;Material: Pure Iron
• Overall Size : 34 x 25 mm / 1.3 x 1inch(Dia. *T) ;Lead Length : 24cm/9. 5 inch
• Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market
• Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
• Use PA66GF30 nylon plastic for framework; high temperature resistance

Feature:

Electric lifting magnet

Powerful and compact

Smooth and flat surface

Low consumption and reliable

Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note:The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.

It is recommended that the actual force is less than 80% of the sucked force  on the name plate.

Specification:

Material: Metal

Input Voltage:24V DC

Peak Force :200N

Holding Force : 150N

Overall Size : 34 x 25 mm / 1.3 x 1inch(Dia. *T)

Thread DIA : 5mm

Lead Length : 24cm/9. 5 inch

Package Includes:

1 x Holding Electromagnet
