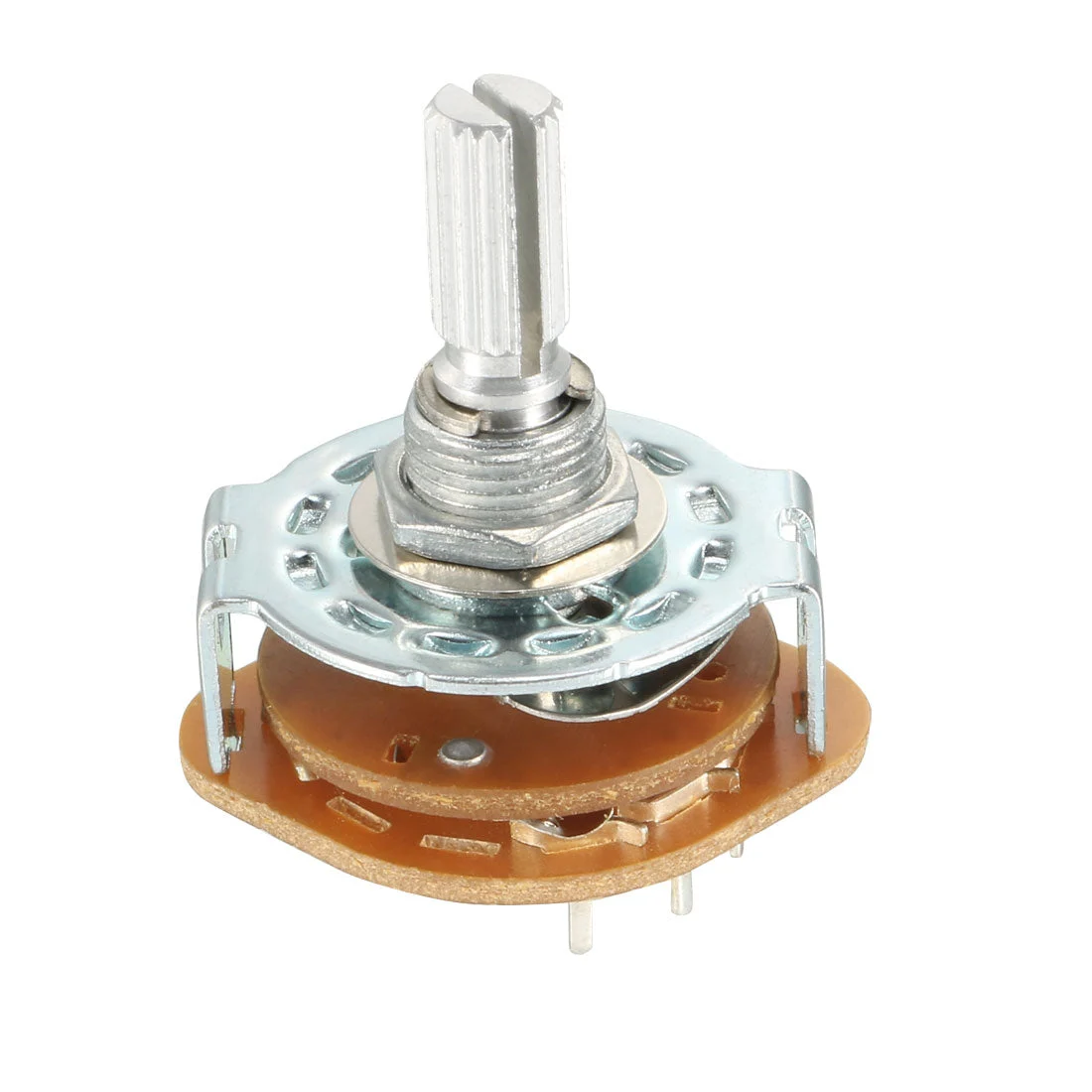

2P3T 2 Pole 3 Position Selectable Single Deck Band Channel Rotary Switch Selector

About this item

• Product Name : Band Selector Rotary Switch
• Contact Type : 2 Pole 3 Position,1 Deck
• Fit Mounting Hole Diameter: 9mm / 0.35″ ; Pin Number : 8
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 14mm/ 0.55″
• Widely used on radio, TV, industrial machine control unit, or other electronic devices.

 Description:

• 2 Pole 3 Position design, plastic metal material, easily turned.
• Widely used on radio, TV, industrial machine control unit, or other electronic devices.

Specification:

• Product Name : Band Selector Rotary Switch
• Package Content : 1Pcs x Rotary Switch
• Material : Metal, Plastic
• Contact Type : 2Pole 3Position,1Deck
• Pin Number : 8
• Fit Mounting Hole Diameter: 9mm / 0.35″
• Rotating Shaft Dia : 6mm / 0.24″ ; Shaft Length : 14mm/ 0.55″
• Dimensions : 37.2 x 31mm / 1.46″ x 1.22″(Max.H*W)
