About this item

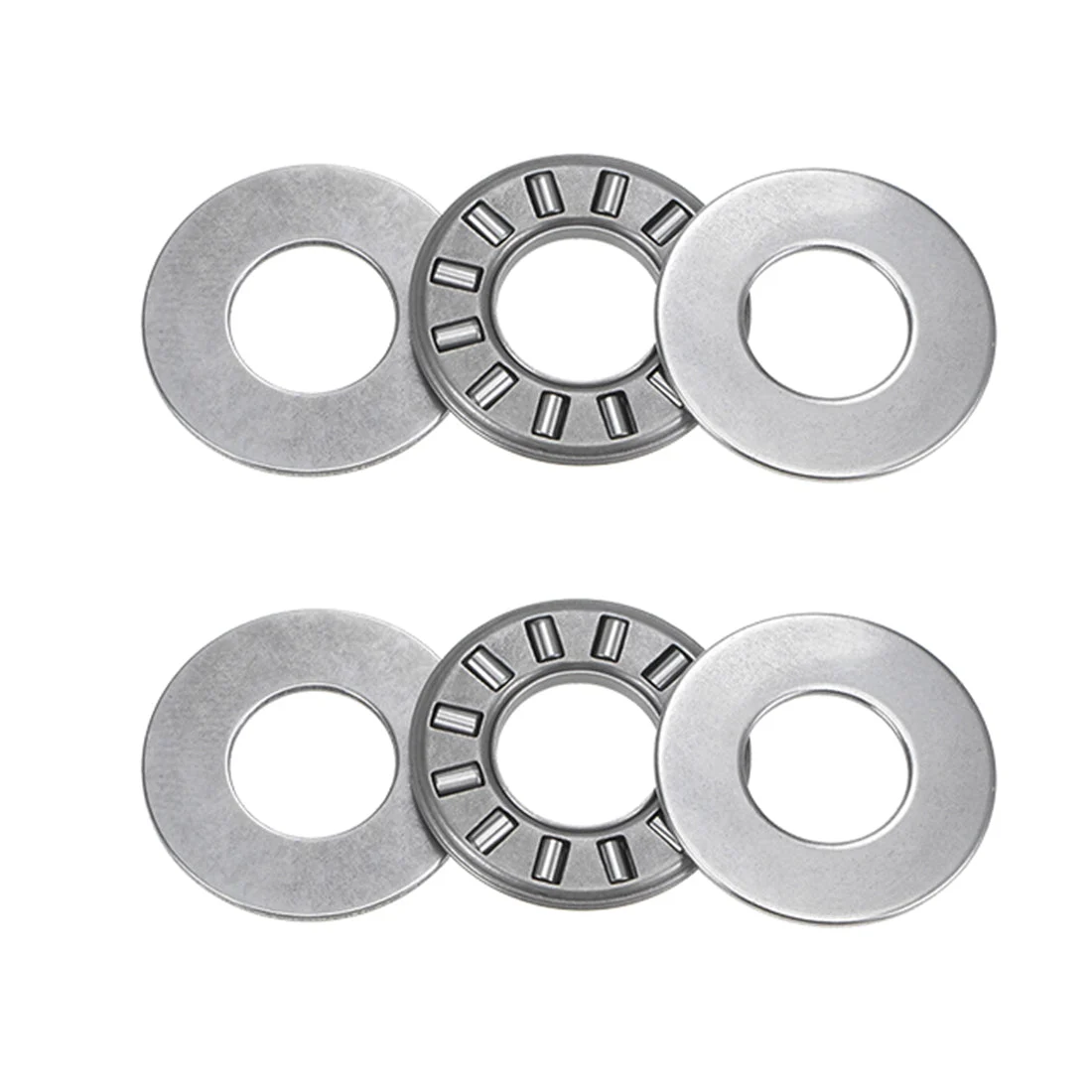

- [Model] – Bearing Model: NTA613 (I.D.=3/8″, O.D.=13/16″, Thickness=5/64″); Washer Model: TRA613
- [MATERIAL] – Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
- [FEATURES] – Needle Roller Thrust Bearings can accommodate axial loads in one direction only
- [WASHER] – Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
- [CAPABILITY] – 19kN Static Load Capacity, 7.75kN Dynamic Load Capacity, 15000RPM Maximum Rotational Speed
Description:
- Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
- These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
- AXK Thrust Bearings can be combined with washers in the TRA series in applications where adjacent components cannot serve as raceways.
- Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.
- Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
Specification:
- Bearing Model: NTA613
- Bearing Washer Model: TRA613
- Needle Roller Material: Chromium Steel (GCr15)
- Cage Material: ST13 Steel
- Bearing Washer Material: 65Mn Spring Steel
- Bore Diameter (d): 3/8″
- Outside Diameter (D): 13/16″
- Bearing Thickness (T1): 5/64″
- Washer Thickness (T2): 0.032″(Approx.)
- Dynamic Load Capacity (Cr): 7.75kN
- Static Load Capacity (Cor): 19kN
- Limiting Speed (Oil): 15000RPM
Package Contents:
- 2 x Bearings
- 4 x Bearing Washers
