About this item
- Max Switching Voltage : DC220V; Max Switching Power : 10W; Float Ball Size : 28x26mm; Wire Length : 370mm; Screw : M11
- The float switch can be installed at the top or bottom of the tank, depending on whether you want to detect water rising or falling.
- Floating ball switch is a kind of liquid level control device with simple structure and convenient use. It has the advantages of small volume and long working life compared with general mechanical switch. When selecting the right material, any kind of liquid, pressure and temperature can be used.
- Widely Applications: For tank / pump water level control;For fish tank and aquarium system; Used for water level control of household appliances;Used for water level control of swimming pool, fountain, pond, waterfall, etc.
- Please Note : Float switch can not directly control solenoid valve or high power relay, AC contactor, etc. Small relays are required to transition.
Specifications:

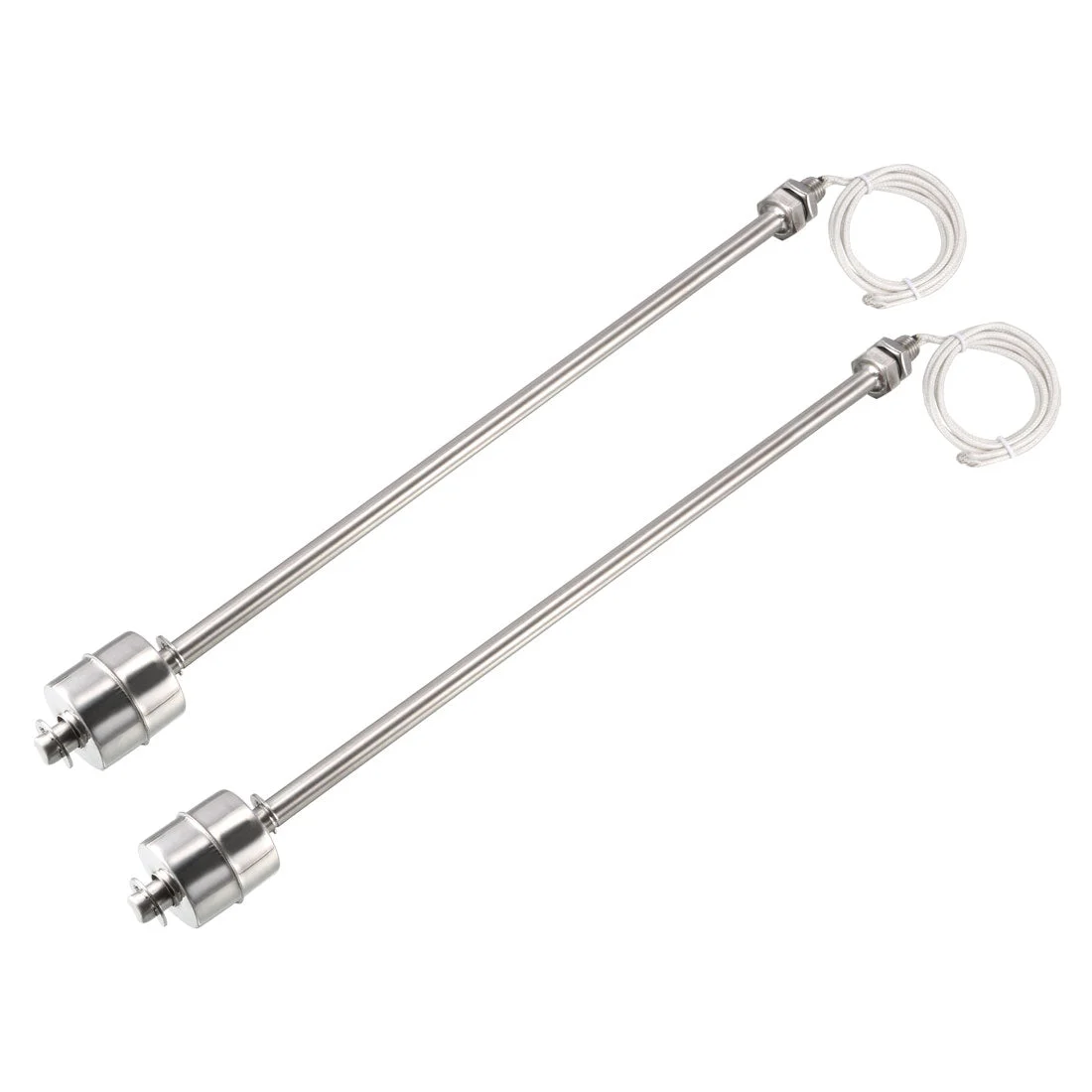

Product Name: Float Switch
Float Ball Number: 1
Max Contact: Rating 10W
Max Switching Voltage: 0-220V
Max Switching Current: 0.5A
Max Breakdown Voltage: 220V DC
Max Carry Current: 1.0A
Max Contact Resistance: 100mohm
Temperature Rating: -10 ~ +60 C
Float Ball Material: Stainless Steel
Float Ball Size(Approx): 28x26mm/1.1×1.02inch(Dia*H)
Thread Size(Approx): 10mm/0.39inch
Total Length: 320mm/12.6inch
Cable Length: 370mm/14.57inch
Net Weight: 168g
Package Content
2 x Float Switch
