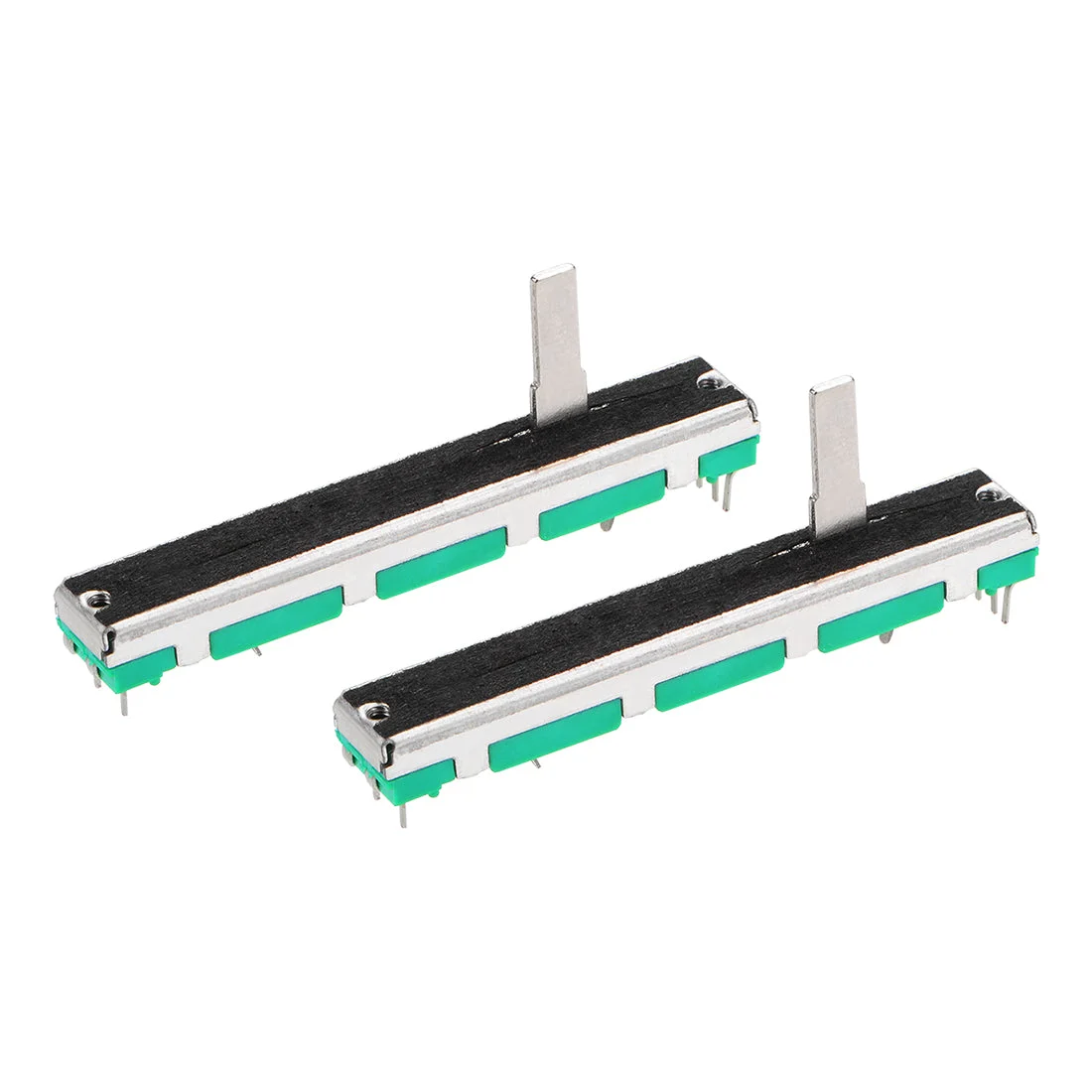

2pcs Variable Resistors 60mm Straight Slide double Potentiometer A103 10K

About this item

• Model: A103 (A type Exponential Potentiometers ), Can be used in Dimming Tuning
• Double Connection, Double Channel, Body Size: 60*9*7mm (L*W * H)；Shaft Size: 15*4*1.2mm (L* W*T)
• Feature: In the first half, the resistance changes slowly, and the resistance in the second half changes quickly, which is beneficial to control the volume.
• Resistance Value: 10K ohm, Tolerance: +/-10%
• Suitable for mixer, electronic organ, guitar, etc. Mainly use to adjust the volume, tone, balance and light etc.

Description:

1.Double Connection, Double Channel

2. In the first half, the resistance changes slowly, and the resistance in the second half changes quickly, which is beneficial to control the volume.

Specifications:

Product Name: Potentiometer

Model:A103 (A type Exponential Potentiometers )

Resistance Value: 10K ohm

Channel: Double Channel

Tolerance: +/-10%

Terminals Number: 6

Body Size: 60*9*7mm (L*W * H)

Shaft Size: 15*4*1.2mm (L* W*T)

Mounting hole diameter : M2

Package Content :

2 x Straight Slide Potentiometer
