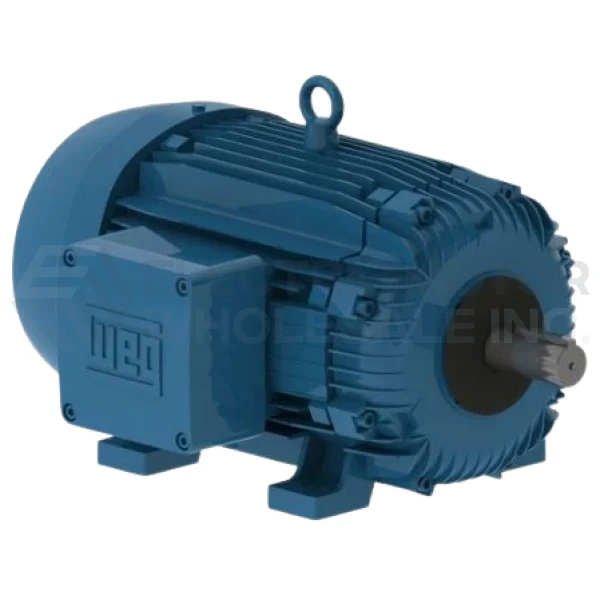

30HP WEG 3545RPM 286TS TEFC 3PH EXPLOSION PROOF MOTOR 03036XT3E286TS

WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Features:

• NEMA Premium efficiency rating
• Inverter Rated:
  • Variable Torque – 1000:1 Class 1&2
  • Constant Torque – 6:1 Class 1&2
• 1 5/8″ Keyed output shaft
• Durable IP55 rated cast iron enclosure
• Class F insulation (impregnation resin and magnet wire are Class H)
• Thermostats
• F1 mounted
• Stainless steel nameplate – laser etched with high contrast background
• Non-sparking fan
• NPT threaded terminal box
• Regreasable ball bearings (Frames 254T and up)
• CSA Approved – File LR50962
  • Class 1, Division 1, Groups C&D, T3C
  • Class 2, Division 1, Groups F&G, T3C
• UL Listed – File E87848
  • Class 1, Division 1, Groups C&D
  • UL modification available for Class 2

Specifications
