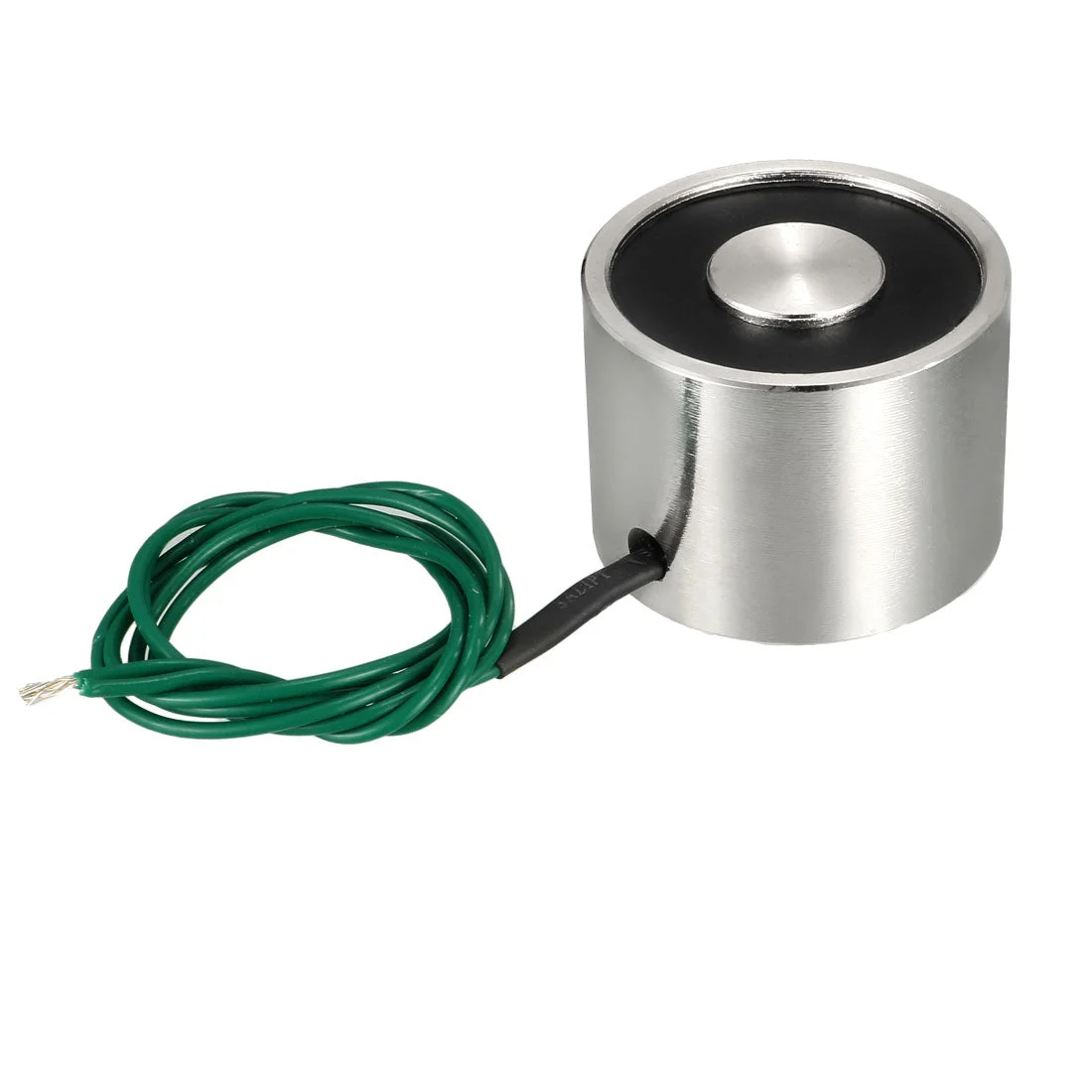

30mm x 22mm DC12V 10KG Sucked Disc Solenoid Electric Lift Holding Electromagnet

About this item

• 【Holding Electromagnet Parameters】- Voltage: DC12V; Peak Force :10KG; Holding Force :7.5KG; Suction Surface Diameter :Φ12
• 【Dood Design】- Thread Size :M4 ; Lead Length : 260mm / 10.24-inch ; Overall Size : 22 x 30mm / 0.87-inch x 1.18-inch (H*D)
• 【ADVANTAGES】- Eelectric Lifting Magnet Electromagnet Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high eelectrical conductivity
• 【NOTED】- The suction contact area of the object to be sucked must be larger than the suction surface of the solenoid electromagnet suction cup,The object absorbed must be clean and The thickness of the object is 5mm best.
• 【APPLICATION】- Eelectric Lifting Magnet Electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.

Feature:

Eelectric lifting magnet

Powerful and compact

Smooth and flat surface

Low consumption and reliable

Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Specification:

Material: Pure Iron

Input Voltage: 12V DC

Peak Force :10KG;

Holding Force :7.5KG;

Duty-cycle (ED%) : 50%;

Eelectric time:Less than 7 minutes ;

Suction Surface Diameter : 12

Thread Size :M4

Overall Size : 22 x 30mm / 0.87-inch x 1.18-inch (H*D)

Lead Length :  260mm / 10.24-inch

Cautions for the use of electromagnets:

1.The object absorbed must be a good magnetic material.

2.The suction surface of the electromagnet must be smooth and clean.

3.The thickness of the object is 5mm best.

4.The contact surface of the object must be larger than the adsorption surface of the electromagnet

Package Includes:1 x Holding Electromagnet
