About this item
- 1. Model: 3362P-101, Resistance Value: 1K Ohm, Tolerance:+/-10%
- 2.Top Adjustment,linear change and Size: 7 x 7 x 11mm, Mounting Type:Through Hole(DIP).
- 3. General used in radio, alarm, air conditioning, communication products, security,etc.
- 4. Main used to adjust voltage (including DC voltage and signal voltage) and current, can be used as voltage divider, rheostat, current controller
- 5. Application:Apply for PCB or DIY. Long life, with soft centering, resistance, linear diversification
Description:
1.Top Adjustment;linear change
2.Application:Apply for PCB or DIY.
3.Main used to adjust voltage (including DC voltage and signal voltage) and current, can be used as voltage divider, rheostat, current controller
Specification:

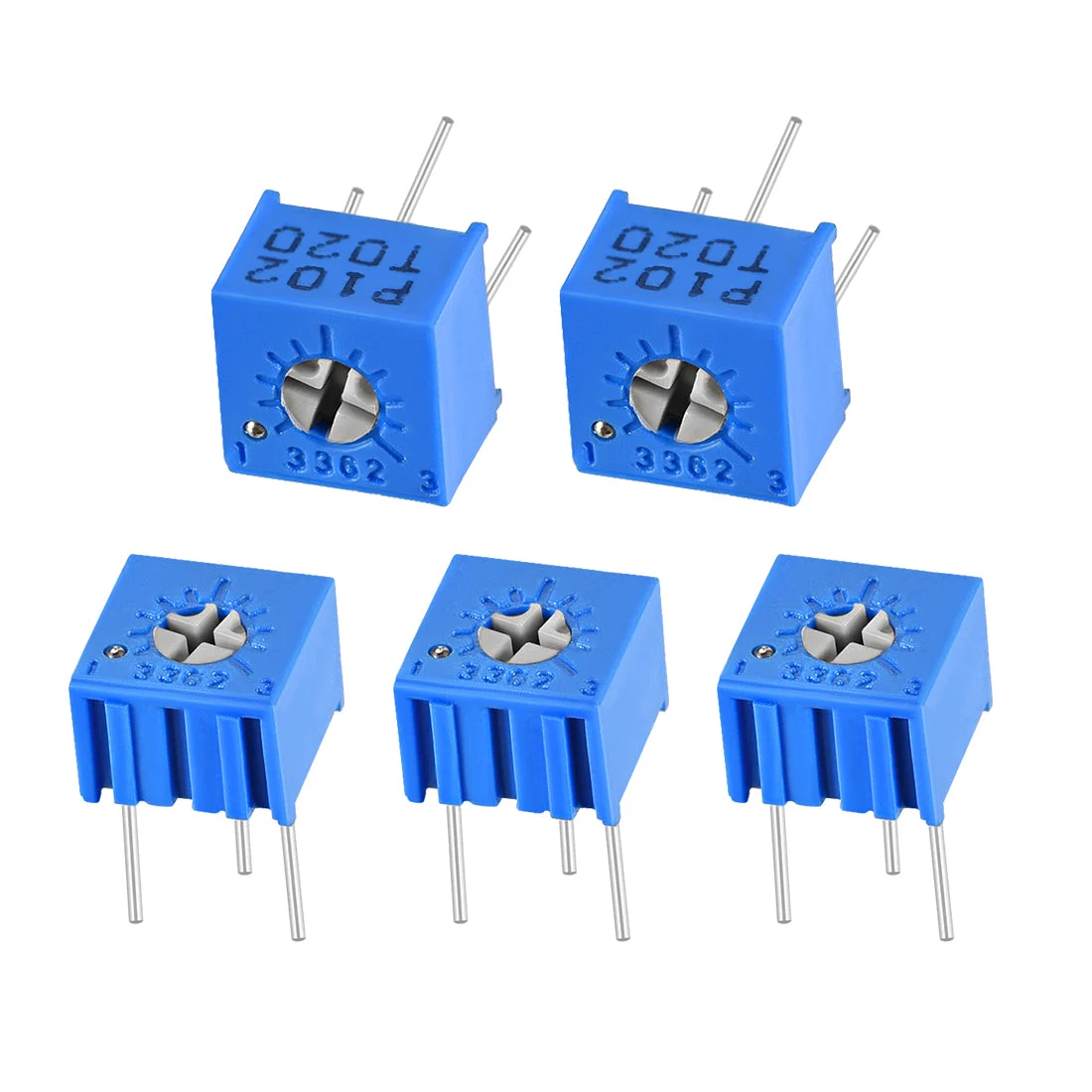

Product Name: Carbon Film Trimmer Potentiometer
Model: 3362P-102
Resistance Value: 1K Ohm
Power Rating: (315 volts max), 0.5W at 70C, 0W at 125C
Tolerance:+/-10%
PIN Mumber:3
Size:7 x 7 x 11mm
Mounting Type:Through Hole(DIP)
Package Content:
5 x Trimmer Potentiometer
