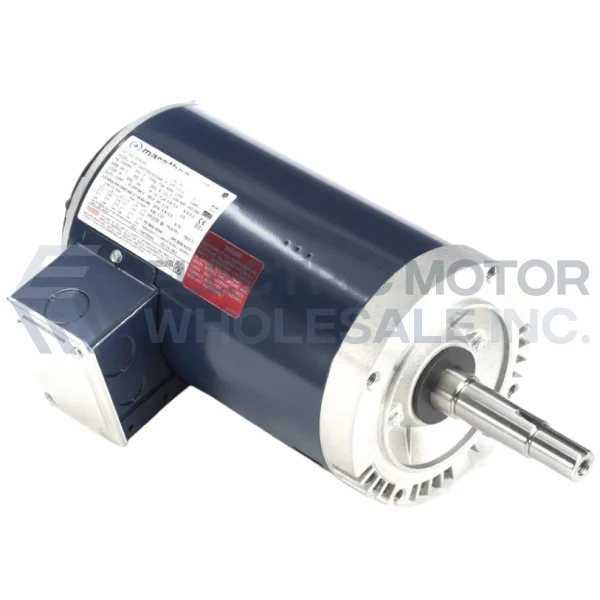

APPLICATIONS: Close-coupled pump where the pump impeller is mounted directly on the motor shaft in environments that are relatively clean and dry.
FEATURES:
- NEMA Premium® models are in compliance with EISA2007
- JMV frame includes drip cover for vertical mount without base
- Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque, 1.0 SF
- Nameplated 60/50 hertz, 190/380 volts at next lower HP
- 1.15 Service Factor
- Class F Insulation
- UL Recognized, CSA Certified, CE Mark
- Three year warranty
This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
Specifications
|
Brand: |
Marathon |
|
Application: |
Closed Coupled |
|
Output HP: |
3//2.0 |
|
Output KW: |
2.24//1.49 |
|
Output RPM: |
3510//2930 |
|
Frame Size NEMA: |
145JMV |
|
Mount NEMA: |
C Face No Base |
|
Enclosure NEMA: |
DP |
|
Enclosure IEC: |
IP22 |
|
Voltage: |
230/460//190/380 |
