About this item
- 【UNIVERSAL DESIGN】 – Pneumatic Solenoid Valve Type: 3 Port 2 Position ; Voltage : DC 12V ; Exhaust Hole size: 1/4″ PT ; Air Flow In Hole Size : 1/4″ PT
- 【ATTENTION】- Please pay attention to the direction of gas flow and the correct connection when installing. Pay attention to dustproof. It is recommended to install a muffler on the exhaust port.
- 【APPLICATION】 – Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
- 【ADVANTAGE】 – Air Solenoid Valve hasHigh frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
- 【 MATERIAL】 – The electromagnetic valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
Specification:

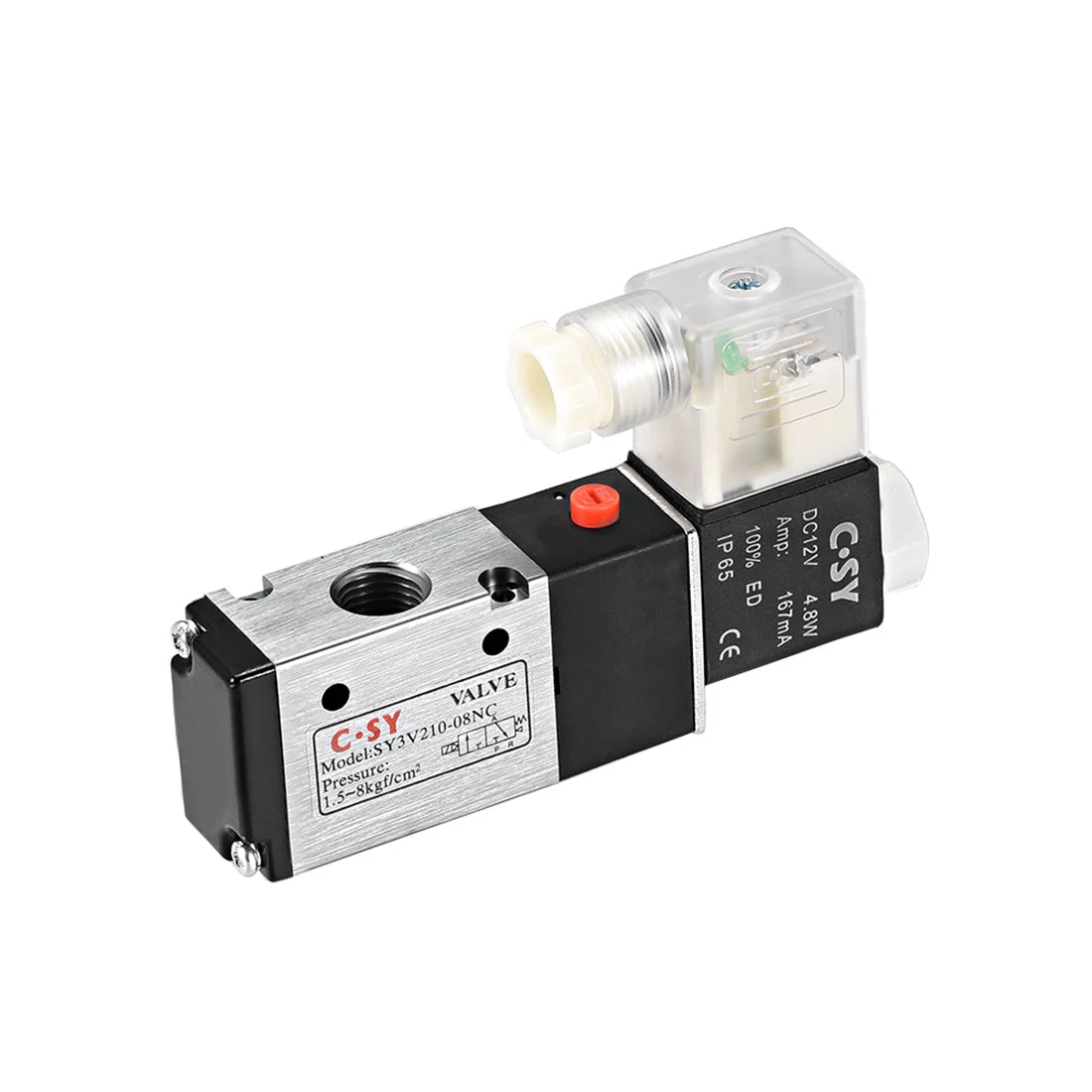

Product Name : Solenoid Valve
Model: 3V210-08
Weight:190g
Color :Black,Silver Tone
CV values: 0.89
Control Type: Power Ups
Voltage :DC12V
Valve Type: 3 Port 2 Position
Mounting hole Size :3.5mm / 0.16″
Exhaust Hole size: 1/4″PT
Air Flow In Hole Size : 1/4″PT
Seal material: NBR
Main parts material: Aluminum alloy
Working pressure: 0.15~0.8mpa (21~114 psi)
Operating temperature: -5~60 Degree Celsius
Total Size : 111x 22 x 65mm /4.37″x0.87″x2.56″ (LxWxH)
Package Included:1 x Solenoid Valve
Description:
1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
2. sealing ring. seals for durability and longer life
3.High precision valve stem. Imported lubricants to ensure lubrication and reduce friction during exercise
4.High frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
5.The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time
6. electronic components. The copper coil can work hard for a long time, and the wiring operation is simple. Lights up when power is on.
7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
Note:
The manual button tests the status of the product when it is powered up
The valve is N / C (normally closed), meaning it will shut down when not powered.
