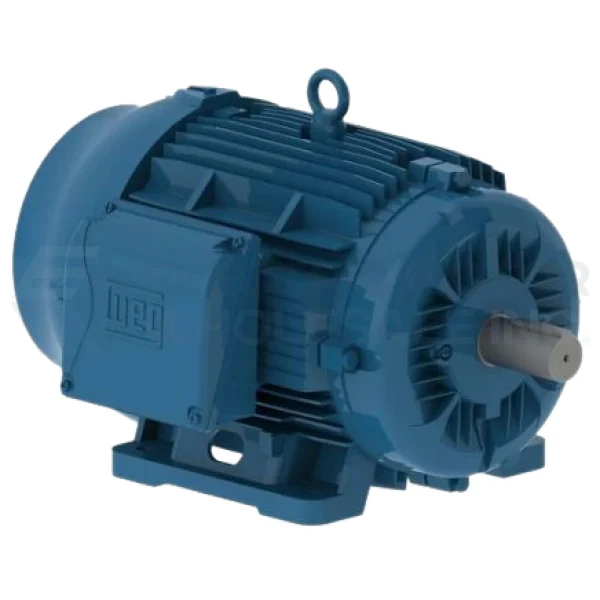

WEG Three Phase General Purpose Cast Iron Motor with cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Features:
- NEMA Premium efficiency rating
- Rated for IEEE45 and USCG 259 – Marine Duty
- Suitable for VFD operation as per NEMA MG1
- Variable Torque: 1000:1
- Constant Torque: 20:1
- Division 2 Explosion Proof Ratings:
- Certified Class 1 Div 2: Groups A, B, C, & D
- Certified Class 2 Div 2: Groups F & G
- 1 7/8″ Keyed output shaft
- Dual rated 60/50Hz (190-220/380-415V @ 50Hz)
- Class F inverter rated insulation system (impregnation resin and magnet wire are insulation Class H)
- Optimized ventilation system for cooler operation and extended life
- High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
- Exclusive WEG painting system exceeds 200hrs ASTM 117 corrosion test (exceeds IEEE 841 standard)
- Balanced to 0.08 inches per second vibration limits (meets IEEE 841 standard)
- F1 mounting as standard, F2 convertible
- Four bolt conduit cover with glued neoprene gasket
- Stainless steel nameplate (laser etched with high contrast background)
- Corrosion proof drains
Specifications
|
Brand: |
WEG |
|
Application: |
General Purpose |
|
Output HP: |
40 |
|
Output KW: |
30 |
|
Output RPM: |
1770 |
|
Frame Size NEMA: |
324/6TS |
|
Mount NEMA: |
With Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
230/460//380 |
