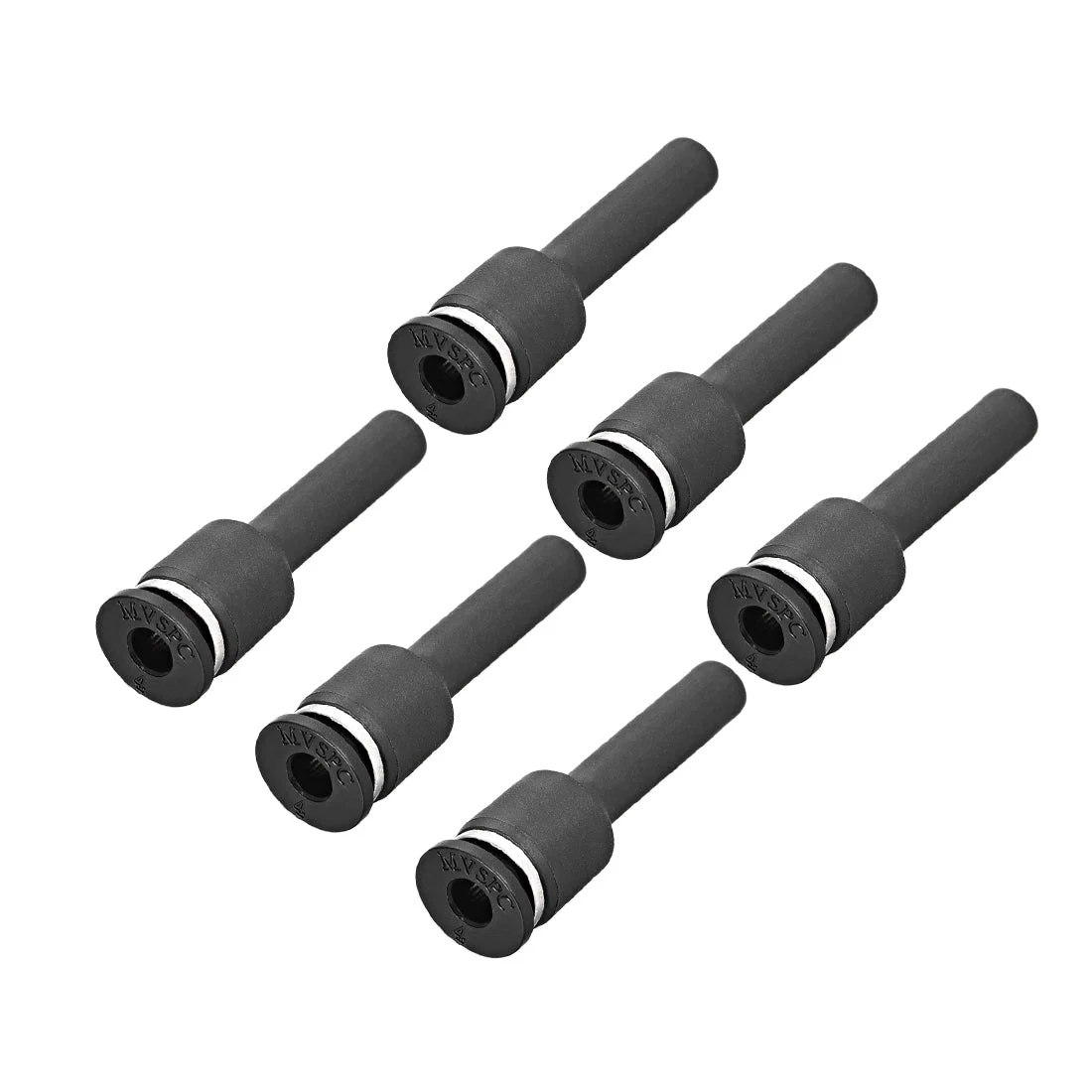

4mm Push Lock Tube Fitting, End OD 6mm Quick Link Air Fittings 6pcs

About this item

• [SIZE] Elliptical Ring End Inner Diameter (for Tube Diameter): 4 mm; Straight End Outer Diameter: 6mm; Overall Size: 11.5 x 39 mm / 0.45 x 1.54 inch (OD*L).
• [FEATURE] Push to connect,after installation, the direction of the tube can be changed freely.
• [EASY to RELEASE] Push the elliptical ring and pull out tube at the same time.
• [APPLICATION] Mainly used for air compression systems, vacuum systems, pneumatic systems.
• [NOTE] Make sure that the cutting surface of the pipe is vertical. Please insert the tube into the bottom before use.

Feature:
Designed for Polyurethane or Nylon tubing.
Even after installation, the direction of the tube can be changed freely.
Elliptical release ring help to connect tube easily by manual, no special tools required.
For quick link connector or extended function.
Applications: Mainly used for air compression systems, vacuum systems, pneumatic systems.
Specification:
Material: Plastic, Brass Nickel Plated
Elliptical Ring End Inner Diameter (for Tube Diameter): 4 mm
Straight End Outer Diameter: 6mm
Overall Size: 11.5 x 39 mm / 0.45 x 1.54 inch (OD*L)
Package Content:
6 x Quick Fittings
