About this item
- UNIVERSAL DESIGN – Pneumatic Solenoid Valve Type: 5 Port 2 Position ; Voltage : AC 24V ; Exhaust Hole size: 1/8″ G ; Air Flow In Hole Size : 1/4″ PT
- ATTENTION- Please pay attention to the direction of gas flow and the correct connection when installing. Pay attention to dustproof. It is recommended to install a muffler on the exhaust port.
- APPLICATION – Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
- ADVANTAGE -High frequency sub-head. Made of high-quality conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
- MATERIAL – The electromagnetic valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
Specification:

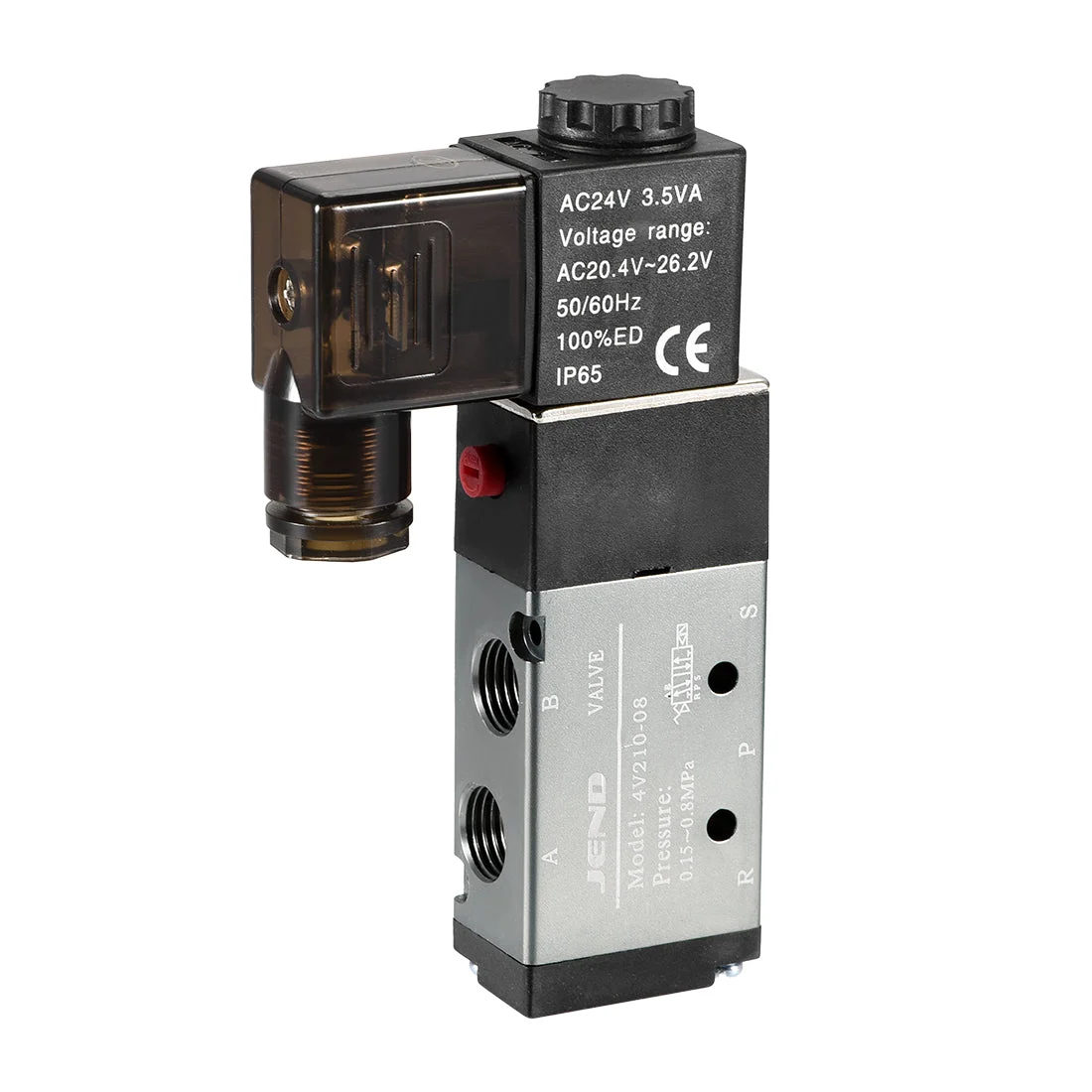

Product Name : Solenoid Valve
Model: 4V210-08
Net Weight: 226g
Color : Black,Silver Tone
CV values: 0.89
Voltage : AC 24V
Valve Type: 5 Port 2 Position
Mounting hole Size : 3.2mm / 0.13″
Exhaust Hole size: 1/8″ PT
Air Flow In Hole Size : 1/4″ PT
Control Type: Power Ups
Seal material: NBR
Main parts material: Aluminum alloy
Working pressure: 0.15~0.8mpa (21~114 psi)
Operating temperature: -5~60 Degree Celsius
Total Size : 119mm x 66mm x 22 mm /4.69″ x 2.6″ x0.87″ (LxWxH)
Package Included:
1 x Solenoid Valve
Description:
1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
2. sealing ring. seals for durability and longer life
3.High precision valve stem. Imported high-quality lubricants to ensure lubrication and reduce friction during exercise
4.High frequency sub-head. Made of high-quality conductor material with 5 times in 1 second high intensity and high frequency response for smoother operation
5.The coil is easy to disassemble. Removable core nut, coil can be replaced at any time
6. electronic components. The copper coil can work hard for a long time, the wiring operation is simple.
7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
Note:
The manual button tests the status of the product when it is powered up.
When the valve is not energized, p on the product map points to A is normally open, and B points to S is normally closed.
