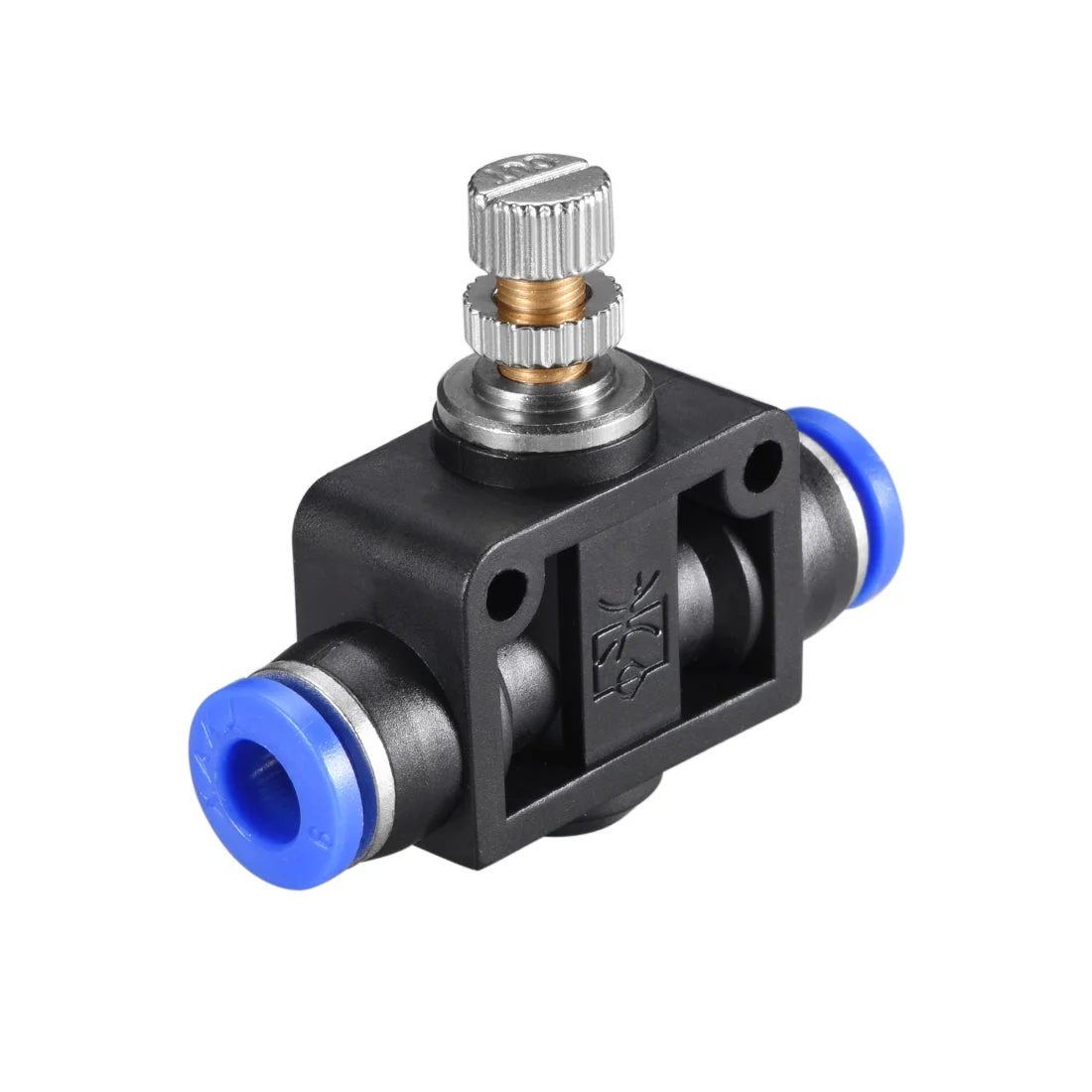

6mm Tube OD Pneumatic Air Flow Control Valve,In-Line Speed Controller Valve,2pcs

About this item

• ►【SPECIFICATION】- pneumatic control valve Model :LSA-4 ;Body Style : Speed Controller Union Straight ; Two Tube Size (OD) : 6mm/0.24″
• ►【FEATURE】- The Pneumatic Flow Control has special adjustment needle design provides a high precision air flow adjustment. Knob for precise manual adjustment of flow rate
• ►【ADVANTAGE】- Air Flow Control Valve Quick and simple installation,with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required
• ►【 MATERIAL】- Air Flow Controller Valve made in plastic,Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
• ►【APPLICATION】- Air flow speed controller valve widely used in pneumatic piping’s Series pneumatic inline air flow speed control valve push in Fitting equipped,connect with polyethylene, nylon and PU tubing.This Quick fittings are only used for industrial automatic apparatus

Product Name : Air Flow Control Valve

Model :LSA-6

Net Weight : 36g

Color : Black,Blue

Material : Plastic,Metal

Surface Treatment : Spray paint

Two Tube Size (OD) : 0.24″ = 6mm

Body Style : Speed Controller Union Straight

Operating Pressure : 0-1MPa

Operating temperature:0 – 60 Degree Celsius

Dimension : 46.7mm x 39.5mm x 13.8mm / 1.84″ x 1.56″ x 0.54″(L x W x H )

Package Content:

2pcs x Air Flow Control Valve

Description:

1.Push in fittings, flow speed controller, used in pneumatic piping’s Series pneumatic inline air flow speed control valve push in fitting equipped,connect with polyethylene, nylon and PU tubing.

2.the special adjustment needle design provides a high precision air flow adjustment. Knob for precise manual adjustment of flow rate

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Quick and simple installation,with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required.

6.Two small tube are use for fixed.

Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can’t pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
