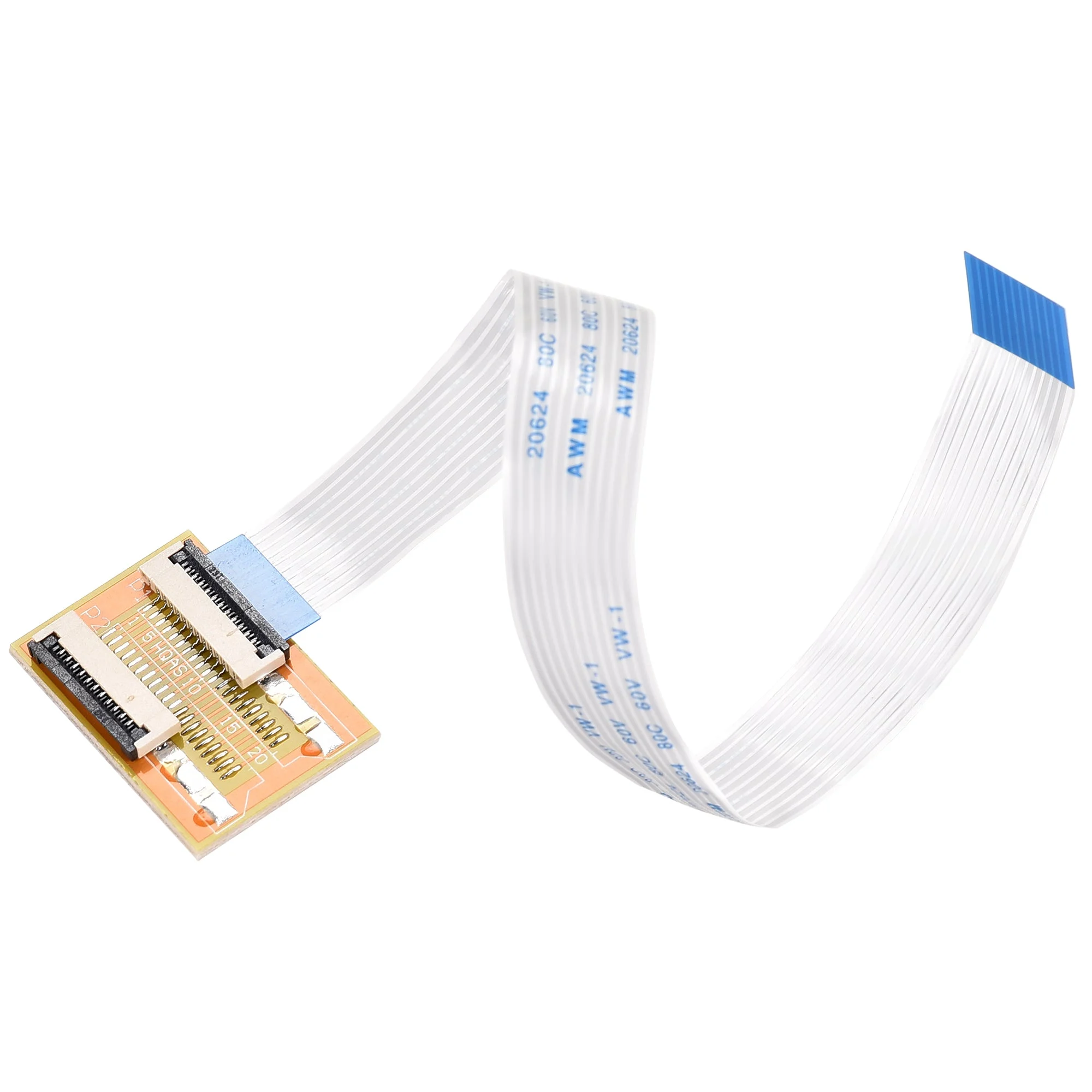

A Type Flexible Flat Cable and Flip Up to Mount Adapter Kit,11P 1.0mm Pitch 20cm

About this item

• [SPECIFICATION]: 11pins 1.0mm Pitch; Dielectric Strength: 60V; Heat Resistance: 80℃. Cable Length: 200mm;A type(Pin on the Same Side); Mounting Methods of the Adapter: flip up the black protective strip, then install your cable.
• [APPLICATION]: Applying to digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, DVD player, stereo, audio system, computer module, other DIY, etc..
• [FUNCTION of ADAPTER]: FPC extension Board PCB support,connection from button board/Converter board to mainboard.
• [CABLE STRUCTURE]: The cable usually consists of a flat and flexible plastic film base, with multiple metallic conductors bonded to one surface. It can be folded freely!
• [CABLE FEATURE]: The end of cable is reinforced with a stiffener to make insertion easier.

Description:

The cable can be folded freely!

1.The term FFC(Flexible Flat Cable)  kit usually refers to the extremely thin flat cable often found in high density electronic applications like lap top, palm top and note pad, etc..

2.The end of cable is reinforced with a stiffener to make insertion easier.

3.The stiffener makes the cable slightly thicker.

4.Applying to digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, etc.

Specification:

Cable Style: A type (Pin on the Same Side)

Mounting Methods of the Adapter: flip up the black protective strip, then install your cable

Cable Model: AWM 20624 80C 60V (A type)

Pins of the Cable and Connector: 11 Pins

Pitch of the Cable and Connector: 1.0mm

Cable Length: 200mm / 7.87″

Temperature: 80C

Voltage: 60V

External Material: PE

Flat Cable Total Size: 200mm x 12mm / 7.87″ x 0.47″(L*W)

Adapter Total Size: 20mm x 29mm / 0.79″ x 1.14″(L*W)

Package Content :

1 Set x Flexible Flat Cable and Adapter(Each with One Piece)
