About this item
- Mounting Hole Distance: 19mm/0.76″; Mounting Hole Diameter: 4mm/0.15′; Pin Diameter: 2mm; Total Size: 62.4mm x 30.76mm/2.45″ x 1.22″
- The Wire Hole Diameter: 33.29mm/1.31″; Terminal Number: 10 Terminals; Rated Current: 10A;Contact Material: Brass with silver plating; Net Weight: 55g; Opening size: 20mm/0.78″
- Color: Silver Tone, Black; Qualification: CE; Model: YP21-10
- Contact Resistance: <1.5ohm; Insulation Resistance:>2000Mohm; Temperature Range: -25~80C
- The Aviation connector is widely used in signal and electronic connector of aviation, space light, post and telecommunications, computer, navigation and various kinds of instruments, CNC machine etc
Description:
Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipment.
Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.
Waterproof and really a great apparatus electronic Connector.

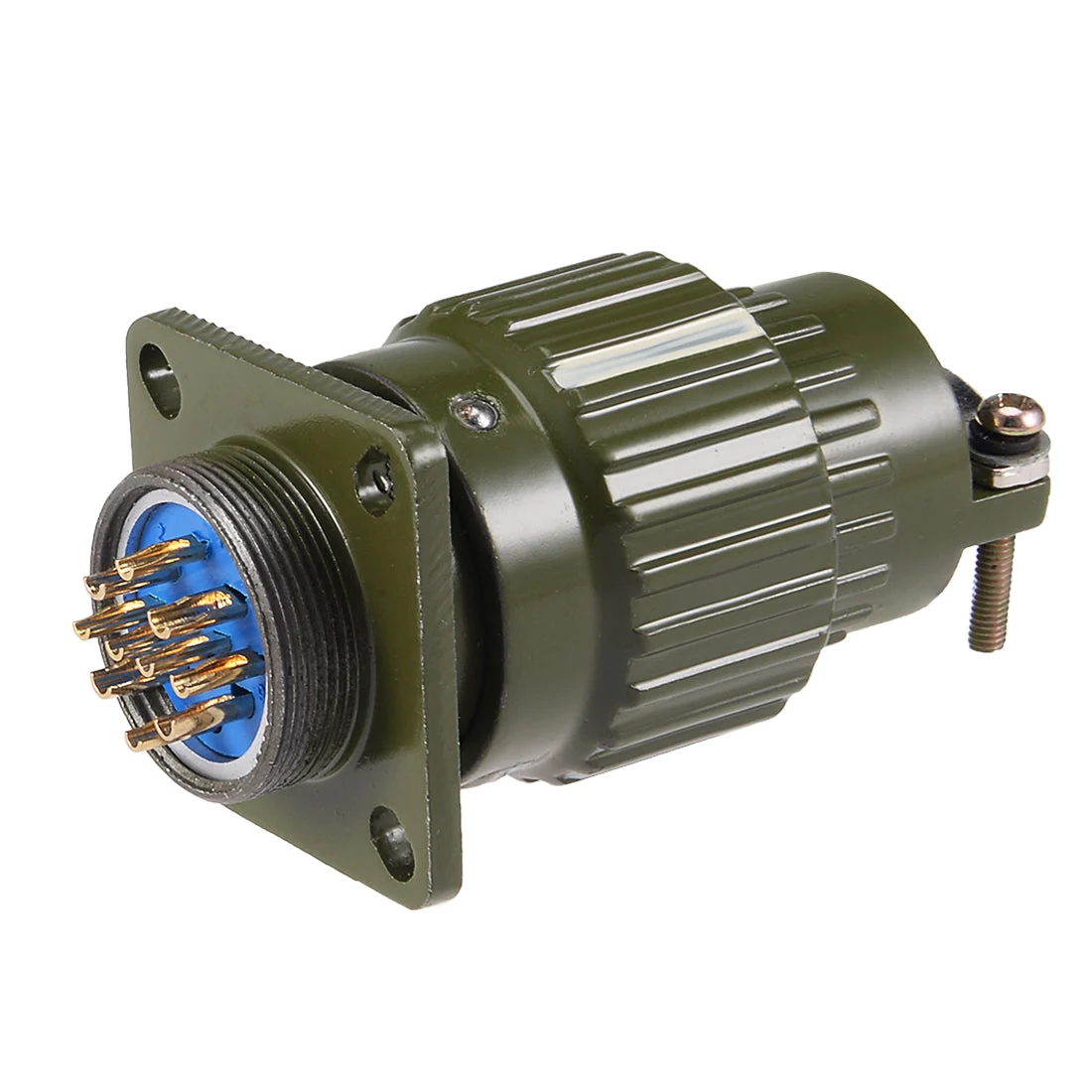

Product Name:Aviation Connector
Model:YP21-10
Terminal Number: 10 Terminals
Thread Dia: 20mm/0.78inch
Rated Current: 10A
Net Weight:55g
Coupling: Thread Coupling
Shell Material: Zinc alloy with chrome plating
Contact Material: Brass with gold plating
Color: Silver Tone, Black
Contact Resistance: 2000Mohm
Temperature Range: -25~80C
Qualification: CE
Package Include:
Package Content: 1 x Aviation Connector
