About this item
- Terminal Number: 7 Terminals; Contact Material: Brass with silver plating;Opening size: 20mm/0.8″; Color: Silver Tone, Black; Qualification: CE
- Model: M20-4; Contact Resistance: <0.01ohm; Insulation Resistance:>500Mohm
- Temperature Range: -25~80C;Total Size: 2.42″ x 1.22″;Net Weight: 58g
- The Wire Hole Diameter: 14mm/0.55″; Terminal Diameter: 2.5mm/0.1″; Mounting Hole Distance: 21.2mm/0.84″
- The Aviation connector is widely used in signal and electronic connector of aviation, space light, post and telecommunications, computer, navigation and various kinds of instruments, CNC machine etc
Description:
Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipment.
Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.
Waterproof and really a great apparatus electronic connector.
Specification:

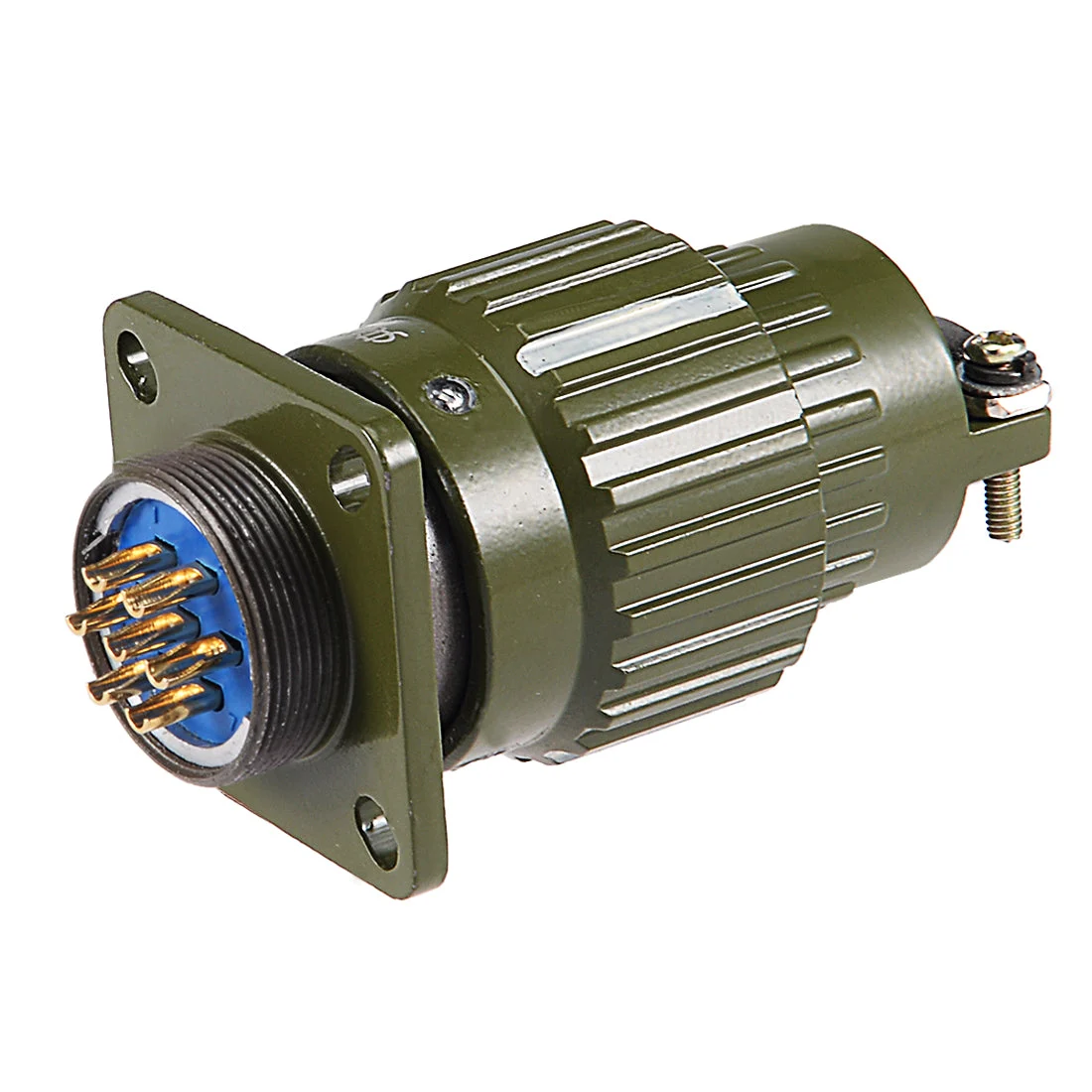

Product Name:Aviation Connector
Model:Y2M-7TK
Terminal Number: 7 Terminals
Thread Dia: 20mm/0.8inch
Net Weight:58g
Coupling: Thread coupling
Shell Material: Zinc alloy with chrome plating
Contact Material: Brass with gold plating
Color: Silver Tone, Black
Contact Resistance: 500Mohm
Temperature Range: -25~80C
Qualification: CE
Package Include:
Package Content: 1 x Aviation Connector
