About this item
- Model: P28-24; Pin Number: 24 Pin; Rated Voltage: 150V; Rated Current: 7A; Contact Resistance: <0.01Ohm
- Insulation Resistance:>500Mohm; Coupling: Thread Coupling; Total Size: 2.96″ x 1.39″; Shell Material: Zinc alloy with chrome plating
- The Wire Hole Diameter: 17.5mm/0.69″; ; Terminal Diameter: 1.7mm/0.067″; Contact Material: Brass with gold plating
- Mounting Hole Distance: 27.2mm/1.07″; Temperature Range: -25~80C; Net Weight: 167g; Package Content: 1 x Aviation Connector
- Opening size: 28mm/1.1″; Color: Silver Tone, Black; Qualification: CE; Pin Hole Dia: 1mm
Description:
Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipments.
Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.
Waterproof and really a great apparatus electronic connector.
Specificatios:

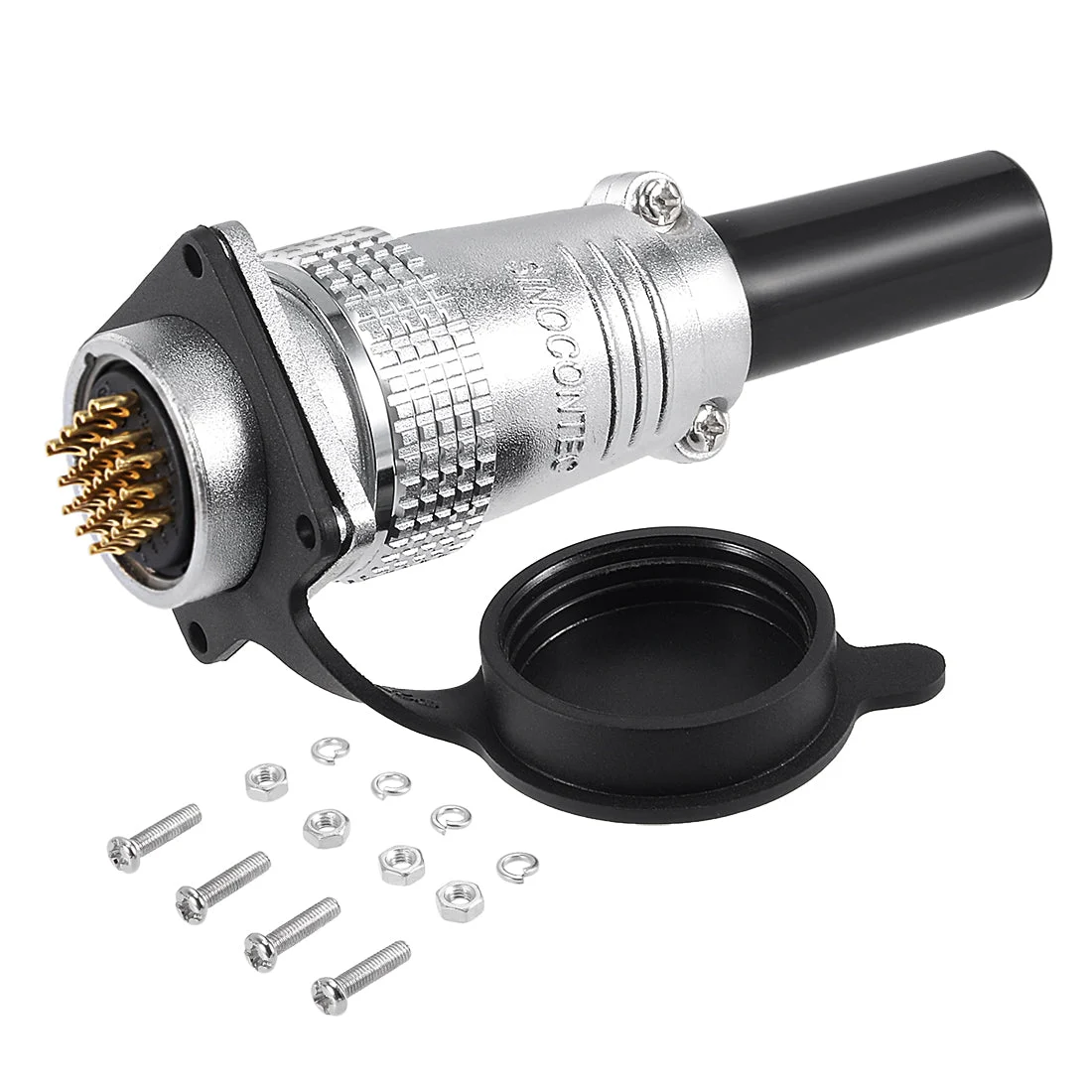

Product Name: Aviation Connector
Model: P28-24
Pin Number: 24 Pin
Thread Dia: 28mm/1.1inch
Pin Hole Dia: 1mm/0.04inch
Rated Voltage: 150V
Rated Current: 7A
Net Weight: 167g
Coupling: Thread couping
Insert Material: PPS
Shell Material: Zinc alloy with chrome plating
Contact Material: Barss with gold plating
Color: Silver Tone, Black
Contact Resistance: 500Mohm
Temprtature Range: -25~80C
Qualification: CE
Package Include:
Package Content: 1 x Aviation Connector
