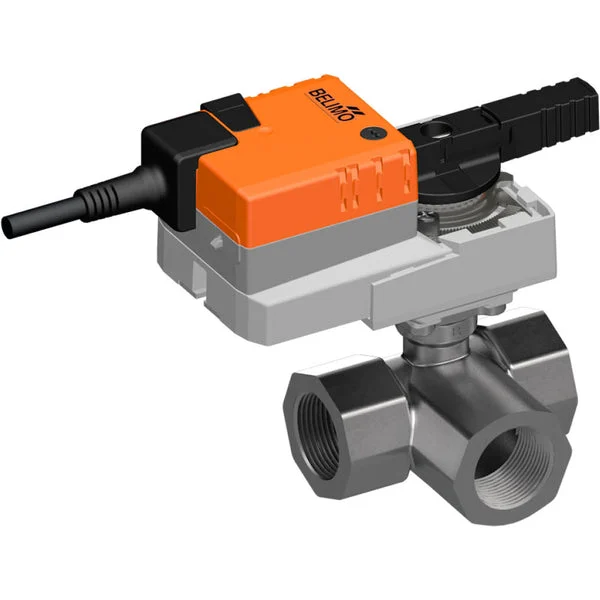

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 40 and the port size is Rp 1 1/2 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 14 m3/h, equivalent to a Cv-value of 16.2 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is designed with BACnet MSTP/Modbus RTU control, offering reliable and robust communication protocols for efficient operation and integration within the networked control environment. The actuator opens/closes the valve in 90 seconds. The actuator has an IP40 rating.
The actuator, equipped with overload protection, doesn’t need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator comes with an inbuilt interface for BACnet MSTP and Modbus RTU. It obtains the digital control signal from the control system and provides the present status. The rotation angle can be adjusted with mechanical end stops.
Pros:
- Manual override
- The actuator is overload protected
- Visual position indicator
Cons:
- The time to open/close of 90 s is slow for some applications
Specifications
Connection size : 1 1/2 inch
Voltage : 24 V AC,24 V DC
Material : Brass
Max pressure difference (bar) : 3.5
Closing pressure (bar) : 5
Control signal : BACnet MSTP,Modbus RTU
Ball bore : L-port
Kv value [m3/h] : 14
Operating time (s) : 90
Connection type : Inner thread cylindrical BSPT-Rp
Ball valve feature : Manual override
Min temperature (°C) : -10
Max temperature (°C) : 120
Max actuator torque (nm) : 10
Communications protocol : BACnet MSTP/Modbus RTU
Degree of protection (IP) : IP40
Spindle seal material : EPDM
Material quality : Dezincification resistant brass (DZR)
Degree of protection (NEMA) : 1
Surface protection : Nickel-plated
Energy consumption in operation (W) : 3.5
Energy consumption at rest (W) : 1.4
Ambient temperature (°C) : -30 °C to 50 °C
Max. electric power input (VA) : 6
Manual override : Yes
Adjustable operating range : No
Allowable relative humidity (%) : 0 % to 95 %
Transmission : With cogwheels
ISO 5211 Direct Mount top flange : No
Voltage : 24 V AC/DC
