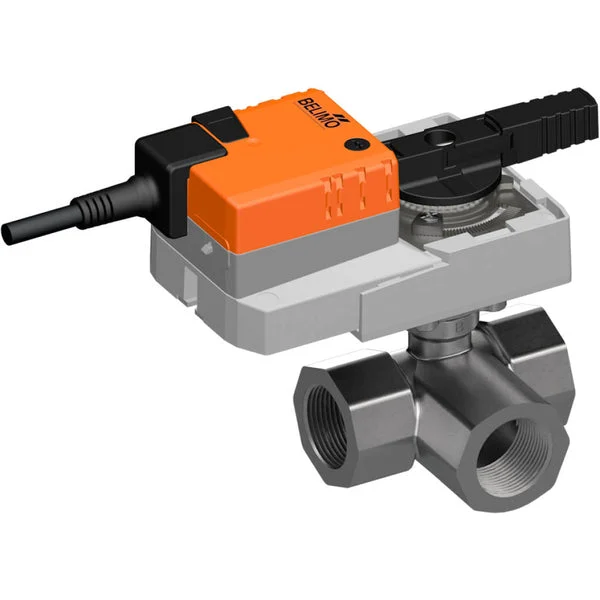

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 32 and the port size is Rp 1 1/4 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 9 m3/h, equivalent to a Cv-value of 10.41 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator utilizes the MP-Bus communication protocol and provides position feedback in the range of 0-10 V or 2-10 V, allowing for precise control and accurate monitoring of its position within the specified voltage range. The actuator opens/closes the valve in 90 seconds. The actuator has an IP54 rating.
The actuator, equipped with overload protection, doesn’t need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator connects with a 0-10 V control signal and moves to the position defined by the signal. Voltage measurement is employed both for visually displaying the valve position within the 0.5% to 100% range and as a control signal for other actuators. In bus operation, the actuator receives its digital control signal from the upper-level controller via the MP-Bus and moves to the defined position. The U connection serves as a communication interface without providing an analog measuring voltage. The rotation angle can be adjusted with mechanical end stops.
Pros:
- This modulating actuator can position the valve anywhere between 0-90 degrees with a control signal of 0-10 V/2-10 V
- Manual override
- The actuator is overload protected
- Visual position indicator
Cons:
- The time to open/close of 90 s is slow for some applications
Specifications
Connection size : 1 1/4 inch
Voltage : 24 V AC,24 V DC
Material : Brass
Max pressure difference (bar) : 3.5
Closing pressure (bar) : 5
Control signal : MP-Bus,2-10 V,0-10 V
Ball bore : L-port
Kv value [m3/h] : 9
Operating time (s) : 90
Connection type : Inner thread cylindrical BSPT-Rp
Ball valve feature : Continuous position feedback,Modulating,Manual override
Min temperature (°C) : -10
Max temperature (°C) : 120
Max actuator torque (nm) : 20
Communications protocol : MP-Bus
Degree of protection (IP) : IP54
Spindle seal material : EPDM
Material quality : Dezincification resistant brass (DZR)
Degree of protection (NEMA) : 2
Surface protection : Nickel-plated
Energy consumption in operation (W) : 3.5
Energy consumption at rest (W) : 1.25
Ambient temperature (°C) : -30 °C to 50 °C
Max. electric power input (VA) : 6
Manual override : Yes
Adjustable operating range : Yes
Allowable relative humidity (%) : 0 % to 95 %
Transmission : With cogwheels
Voltage : 24 V AC/DC
