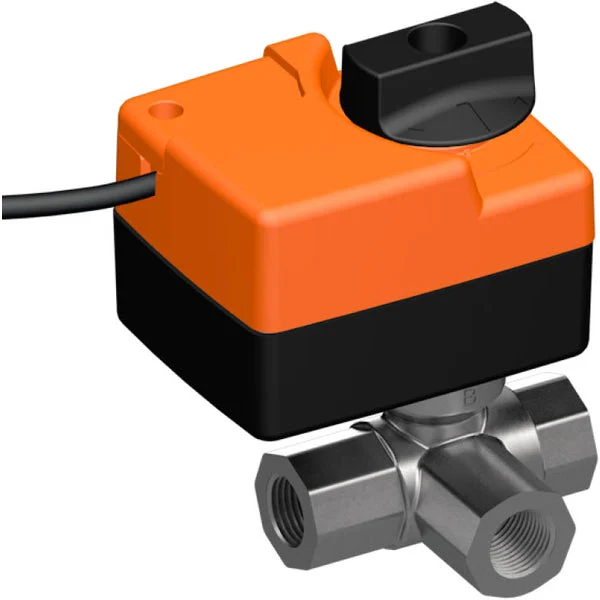

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 25 and the port size is Rp 1/2 inch with female threads. The maximum pressure differential is 10 bar (145 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 15 m3/h, equivalent to a Cv-value of 17.36 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 35 seconds. The actuator has an IP40 rating.
Manual override is possible using a lever, which disengages the gearing as long as the self-resetting lever is pressed. The actuator has overload protection and automatically stops upon reaching the end stop. In case of blockage, the actuator switches off for seven seconds before attempting to restart. If the blockage persists, the actuator attempts to restart 15 times every two minutes and subsequently only once every two hours. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments.
Pros:
- Manual override
- Visual position indicator
Cons:
- The time to open/close of 35 s is slow for some applications
Specifications
Connection size : 1/2 inch
Voltage : 24 V AC,24 V DC
Material : Brass
Max pressure difference (bar) : 10
Closing pressure (bar) : 14
Control signal : Three-point (open-close),Two-point (open-close)
Ball bore : L-port
Kv value [m3/h] : 15
Operating time (s) : 35
Connection type : Inner thread cylindrical BSPT-Rp
Ball valve feature : Manual override
Min temperature (°C) : -10
Max temperature (°C) : 120
Max actuator torque (nm) : 2
Degree of protection (IP) : IP40
Spindle seal material : EPDM
Material quality : Dezincification resistant brass (DZR)
Degree of protection (NEMA) : 2
Surface protection : Nickel-plated
Energy consumption in operation (W) : 0.5
Ambient temperature (°C) : -7 °C to 50 °C
Max. electric power input (VA) : 0.5
Manual override : Yes
Adjustable operating range : No
Allowable relative humidity (%) : 0 % to 95 %
Transmission : With cogwheels
ISO 5211 Direct Mount top flange : No
Voltage : 24 V AC/DC
