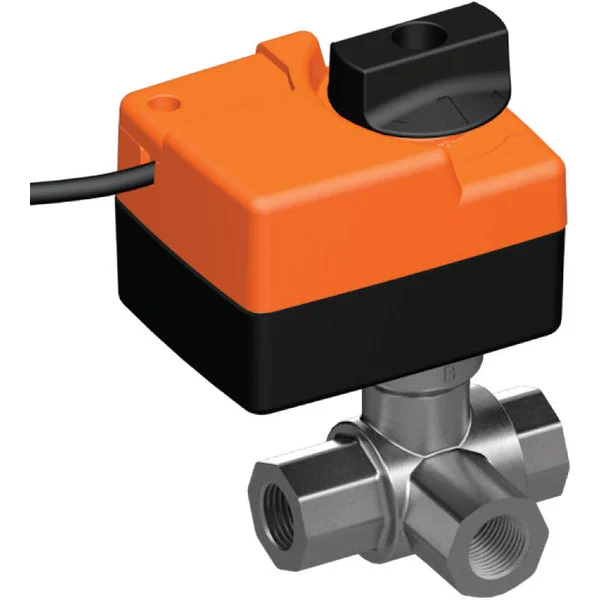

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 5.5 m3/h, equivalent to a Cv-value of 6.36 gpm. The actuator requires a supply voltage of 230 V AC. The actuator opens/closes the valve in 105 seconds. The actuator has an IP40 rating.
Manual override is possible using a lever, which disengages the gearing as long as the self-resetting lever is pressed. The actuator automatically switches off when end stops are reached, with a pulse duration of ≥0.5 s. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments.
Pros:
- Manual override
- Visual position indicator
Cons:
- The time to open/close of 105 s is slow for some applications
Specifications
Connection size : 1/2 inch
Voltage : 230 V AC
Material : Brass
Max pressure difference (bar) : 3.5
Closing pressure (bar) : 5
Control signal : Three-point (open-close)
Ball bore : L-port
Kv value [m3/h] : 5.5
Operating time (s) : 105
Connection type : Inner thread cylindrical BSPT-Rp
Ball valve feature : Manual override
Min temperature (°C) : -10
Max temperature (°C) : 120
Max actuator torque (nm) : 2
Degree of protection (IP) : IP40
Spindle seal material : EPDM
Material quality : Dezincification resistant brass (DZR)
Degree of protection (NEMA) : 2
Surface protection : Nickel-plated
Energy consumption in operation (W) : 1
Ambient temperature (°C) : -7 °C to 50 °C
Max. electric power input (VA) : 1
Manual override : Yes
Adjustable operating range : No
Allowable relative humidity (%) : 0 % to 95 %
Transmission : With cogwheels
ISO 5211 Direct Mount top flange : No
Voltage : 230 V AC
