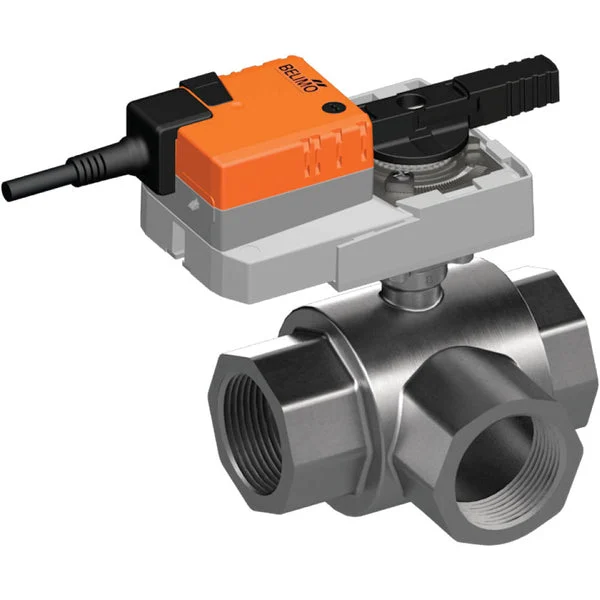

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 50 and the port size is Rp 2 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 75 m3/h, equivalent to a Cv-value of 86.78 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 20 seconds. The actuator has an IP54 rating.
The actuator, equipped with overload protection, doesn’t need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The rotation angle can be adjusted with mechanical end stops.
Pros:
- Manual override
- The actuator is overload protected
- Visual position indicator
Specifications
Connection size : 2 inch
Voltage : 120 V AC,230 V AC
Material : Brass
Max pressure difference (bar) : 3.5
Closing pressure (bar) : 5
Control signal : Three-point (open-close),Two-point (open-close)
Ball bore : L-port
Kv value [m3/h] : 75
Operating time (s) : 20
Connection type : Inner thread cylindrical BSPT-Rp
Ball valve feature : Manual override
Min temperature (°C) : -10
Max temperature (°C) : 120
Max actuator torque (nm) : 16
Degree of protection (IP) : IP54
Spindle seal material : EPDM
Material quality : Dezincification resistant brass (DZR)
Degree of protection (NEMA) : 2
Surface protection : Nickel-plated
Energy consumption in operation (W) : 4.5
Energy consumption at rest (W) : 1
Ambient temperature (°C) : -30 °C to 50 °C
Max. electric power input (VA) : 8
Manual override : Yes
Adjustable operating range : No
Allowable relative humidity (%) : 0 % to 95 %
Transmission : With cogwheels
ISO 5211 Direct Mount top flange : No
Voltage : 100-240 V AC
