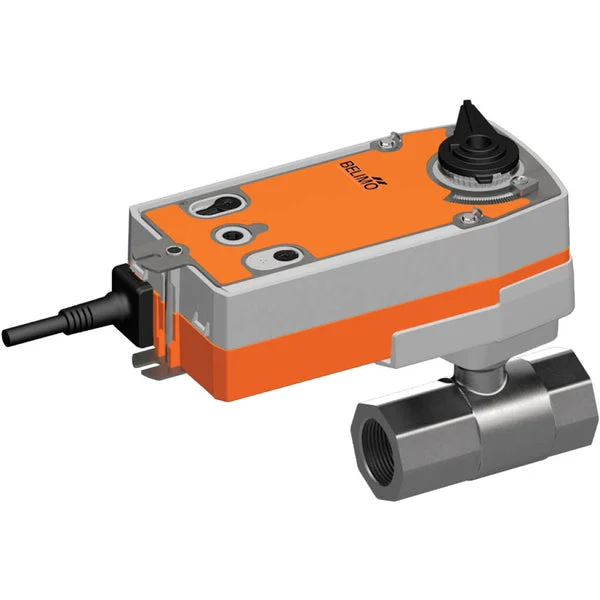

This is a 2-way Belimo ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 40 and the port size is Rp 1 1/2 inch with female threads. The maximum pressure differential is 10 bar (145 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 31 m3/h, equivalent to a Cv-value of 35.87 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features three-point (open-close) control. The actuator opens/closes the valve in 90 seconds. The actuator has an IP54 rating. The actuator is equipped with a fail-safe (NO) feature that ensures safe operation in the event of a power failure.
The actuator, equipped with overload protection, doesn’t need limit switches and will stop automatically when the end stop is reached. The valve can be manually operated and secured in any position using a hand crank. Unlocking can be done manually or automatically by applying the operating voltage. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator simultaneously moves the valve to the operating position and tensions the return spring. If the power source is cut off, the valve reverts to the fail-safe position driven by the spring force. The rotation angle can be adjusted with mechanical end stops.
Pros:
- The actuator is equipped with a fail-safe feature
Specifications
Connection size : 1 1/2 inch
Voltage : 120 V AC,230 V AC
Material : Brass
Seal material : EPDM
Control signal : Three-point (open-close)
Max pressure difference (bar) : 10
Closing pressure (bar) : 14
Operating time (s) : 90
Connection type : Inner thread cylindrical BSPT-Rp
Ball valve feature : NO Normally open,Manual override
Kv value [m3/h] : 31
Max actuator torque (nm) : 10
Max temperature (°C) : 120
Min temperature (°C) : -10
Material quality : Dezincification resistant brass (DZR)
Degree of protection (IP) : IP54
Manual override : Yes
Safety function : NO Normally open
Adjustable operating range : No
Allowable relative humidity (%) : 0 % to 95 %
Ambient temperature (°C) : -30 °C to 50 °C
Material ball : Stainless steel
Material ball seal : Teflon (PTFE)
Max. electric power input (VA) : 15
Spindle material : Stainless steel
Spindle seal material : EPDM
Transmission : With cogwheels
Degree of protection (NEMA) : 2
Energy consumption at rest (W) : 3
Energy consumption in operation (W) : 4
ISO 5211 Direct Mount top flange : No
Voltage : 100-240 V AC
