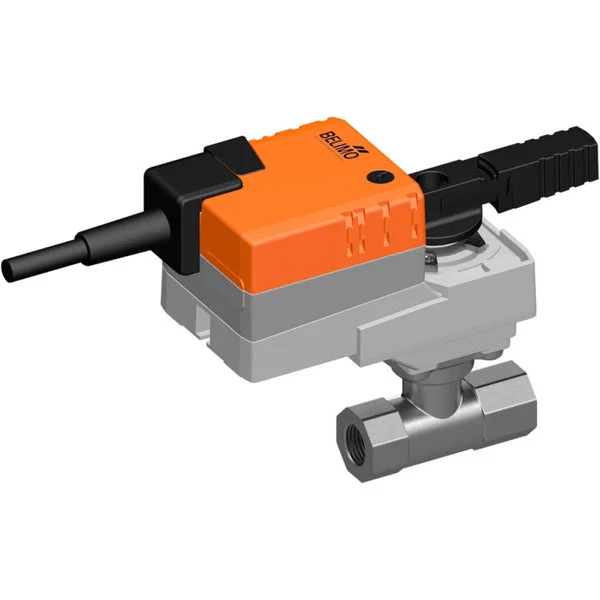

This is a Belimo 2-way ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The maximum pressure differential is 10 bar (145 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 15 m3/h, equivalent to a Cv-value of 17.36 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is designed with BACnet MSTP/Modbus RTU control, offering reliable and robust communication protocols for efficient operation and integration within the networked control environment. The actuator opens/closes the valve in 90 seconds. The actuator has an IP40 rating.
The actuator, equipped with overload protection, doesn’t need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator comes with an inbuilt interface for BACnet MSTP and Modbus RTU. It obtains the digital control signal from the control system and provides the present status. The rotation angle can be adjusted with mechanical end stops.
Pros:
- Manual override
- The actuator is overload protected
- Visual position indicator
Cons:
- The time to open/close of 90 s is slow for some applications
Specifications
Connection size : 1/2 inch
Voltage : 24 V AC,24 V DC
Material : Brass
Seal material : EPDM
Control signal : BACnet MSTP,Modbus RTU
Max pressure difference (bar) : 10
Closing pressure (bar) : 14
Operating time (s) : 90
Connection type : Inner thread cylindrical BSPT-Rp
Ball valve feature : Manual override
Kv value [m3/h] : 15
Max actuator torque (nm) : 5
Max temperature (°C) : 120
Min temperature (°C) : -10
Communications protocol : BACnet MSTP/Modbus RTU
Material quality : Dezincification resistant brass (DZR)
Degree of protection (IP) : IP40
Manual override : Yes
Adjustable operating range : No
Allowable relative humidity (%) : 0 % to 95 %
Ambient temperature (°C) : -30 °C to 50 °C
Material ball : Stainless steel
Material ball seal : Teflon (PTFE)
Max. electric power input (VA) : 5
Spindle material : Stainless steel
Spindle seal material : EPDM
Transmission : With cogwheels
Degree of protection (NEMA) : 1
Energy consumption at rest (W) : 1.3
Energy consumption in operation (W) : 2.5
ISO 5211 Direct Mount top flange : No
Voltage : 24 V AC/DC
