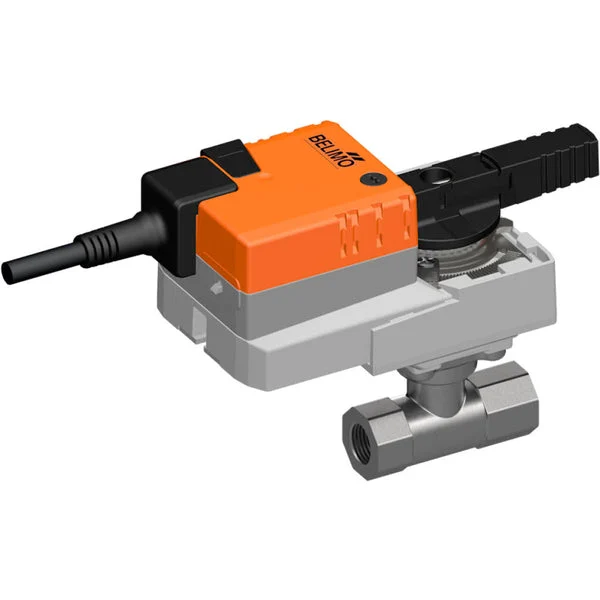

This is a 2-way Belimo ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The maximum pressure differential is 10 bar (145 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 15 m3/h, equivalent to a Cv-value of 17.36 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator utilizes the MP-Bus communication protocol and provides position feedback in the range of 0-10 V or 2-10 V, allowing for precise control and accurate monitoring of its position within the specified voltage range. The actuator opens/closes the valve in 90 seconds. The actuator has an IP54 rating.
The actuator, equipped with overload protection, doesn’t need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator connects with a 0-10 V control signal and moves to the position defined by the signal. Voltage measurement is employed both for visually displaying the valve position within the 0.5% to 100% range and as a control signal for other actuators. In bus operation, the actuator receives its digital control signal from the upper-level controller via the MP-Bus and moves to the defined position. The U connection serves as a communication interface without providing an analog measuring voltage. The rotation angle can be adjusted with mechanical end stops.
Pros:
- This modulating actuator can position the valve anywhere between 0-90 degrees with a control signal of 0-10 V/2-10 V
Specifications
Connection size : 1/2 inch
Voltage : 24 V AC,24 V DC
Material : Brass
Seal material : EPDM
Control signal : MP-Bus,2-10 V,0-10 V
Max pressure difference (bar) : 10
Closing pressure (bar) : 14
Operating time (s) : 90
Connection type : Inner thread cylindrical BSPT-Rp
Ball valve feature : Modulating,Manual override,Continuous position feedback
Kv value [m3/h] : 15
Max actuator torque (nm) : 10
Max temperature (°C) : 120
Min temperature (°C) : -10
Communications protocol : MP-Bus
Material quality : Dezincification resistant brass (DZR)
Degree of protection (IP) : IP54
Manual override : Yes
Adjustable operating range : Yes
Allowable relative humidity (%) : 0 % to 95 %
Ambient temperature (°C) : -30 °C to 50 °C
Material ball : Stainless steel
Material ball seal : Teflon (PTFE)
Max. electric power input (VA) : 6
Position reporting signal : 0-10 V/2-10 V
Spindle material : Stainless steel
Spindle seal material : EPDM
Transmission : With cogwheels
Degree of protection (NEMA) : 2
Energy consumption at rest (W) : 1.2
Energy consumption in operation (W) : 3.5
Voltage : 24 V AC/DC
