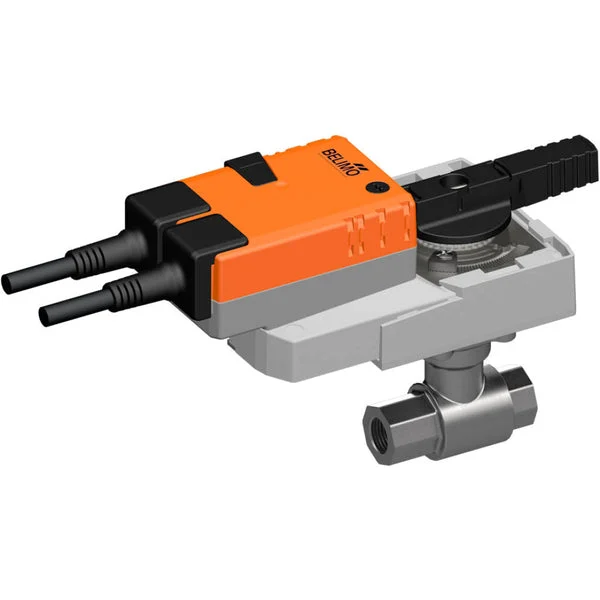

Belimo Ball Valve Rp3/4 Kvs32 24VAC/DC 90s BACnet/Modbus 10Nm IP40 R2020-S2/VNR24A-LP1

This is a Belimo 2-way ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. The maximum pressure differential is 10 bar (145 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 32 m3/h, equivalent to a Cv-value of 37.02 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features BACnet IP/Modbus TCP control, enabling versatile communication and interoperability with other systems for streamlined control and monitoring capabilities. The actuator opens/closes the valve in 90 seconds. The actuator has an IP40 rating.

The actuator, equipped with overload protection, doesn’t need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. Manual triggering of adaptation can be done by pressing the “Adaptation” button. Both mechanical end stops are detected during the adaptation (entire setting range). The actuator then moves into the position defined by the control signal. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator is controlled via the Cloud, BACnet IP, or Modbus TCP and moves to the position defined by the control signal. Various data points can be written and read via the same interfaces. In hybrid mode, the actuator receives its analog control signal from the higher-level controller and moves to the defined position. Various data points can be read and written (except for the control signal) using the Cloud, BACnet IP, or Modbus TCP. The rotation angle can be adjusted with mechanical end stops. The recorded data (integrated data recording for 13 months) can be utilized for analytical purposes. CSV files can be downloaded via a web browser. Upon initial power supply, i.e., during commissioning, the actuator performs an adaptation where the operating range and position feedback adjust to the mechanical setting range. The actuator then moves into the position defined by the control signal.

Pros:

• Manual override
• The actuator is overload protected
• Visual position indicator

Cons:

• The time to open/close of 90 s is slow for some applications

Specifications

Connection size : 3/4 inch
Voltage : 24 V AC,24 V DC
Material : Brass
Seal material : EPDM
Control signal : BACnet IP,Modbus TCP
Max pressure difference (bar) : 10
Closing pressure (bar) : 14
Operating time (s) : 90
Connection type : Inner thread cylindrical BSPT-Rp
Ball valve feature : Manual override
Kv value [m3/h] : 32
Max actuator torque (nm) : 10
Max temperature (°C) : 120
Min temperature (°C) : -10
Communications protocol : BACnet IP/Modbus TCP
Material quality : Dezincification resistant brass (DZR)
Degree of protection (IP) : IP40
Manual override : Yes
Adjustable operating range : Yes
Allowable relative humidity (%) : 0 % to 95 %
Ambient temperature (°C) : -30 °C to 50 °C
Material ball : Stainless steel
Material ball seal : Teflon (PTFE)
Max. electric power input (VA) : 6.5
Spindle material : Stainless steel
Spindle seal material : EPDM
Transmission : With cogwheels
Energy consumption at rest (W) : 1.2
Energy consumption in operation (W) : 4.5
ISO 5211 Direct Mount top flange : No
Voltage : 24 V AC/DC
