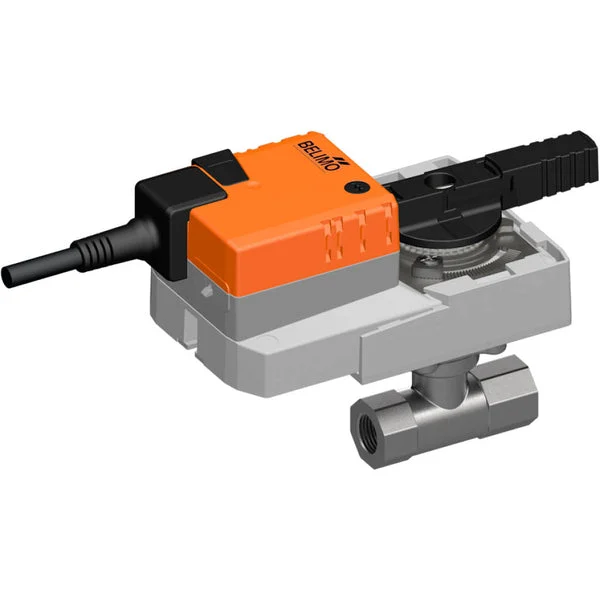

This is a Belimo 2-way characterized ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 8.6 m3/h, equivalent to a Cv-value of 9.95 gpm. The actuator requires a supply voltage of 24 V AC/DC. The modulating actuator is requires a 2-10 V input and offers position feedback, ensuring precise control over its operation and accurate monitoring of its position within the designated voltage range. The actuator opens/closes the valve in 90 seconds. The actuator has an IP54 rating.
The actuator, equipped with overload protection, doesn’t need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator can be controlled with a standard control signal of 2-10 V and moves to the position dictated by the control signal. Voltage measurement is employed both for visually displaying the valve position within the 0.5% to 100% range and as a control signal for other actuators. The rotation angle can be adjusted with mechanical end stops.
Pros:
- The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
- This modulating actuator can position the valve anywhere between 0-90 degrees with a control signal of 2-10 V
- Manual override
- The actuator is overload protected
- Visual position indicator
Cons:
- The time to open/close of 90 s is slow for some applications
Specifications
Connection size : 3/4 inch
Voltage : 24 V AC,24 V DC
Material : Brass
Seal material : EPDM
Control signal : 2-10 V
Max pressure difference (bar) : 3.5
Closing pressure (bar) : 14
Operating time (s) : 90
Connection type : Inner thread cylindrical BSPT-Rp
Ball valve feature : Modulating,Manual override,Continuous position feedback
Kv value [m3/h] : 8.6
Max actuator torque (nm) : 20
Max temperature (°C) : 120
Min temperature (°C) : -10
Material quality : Dezincification resistant brass (DZR)
Degree of protection (IP) : IP54
Manual override : Yes
Ground characteristic : Equal percentage
Allowable relative humidity (%) : 0 % to 95 %
Ambient temperature (°C) : -30 °C to 50 °C
Max. electric power input (VA) : 5
Position reporting signal : 2-10 V
Surface protection : Nickel-plated
Transmission : With cogwheels
Degree of protection (NEMA) : 2
Energy consumption at rest (W) : 0.4
Energy consumption in operation (W) : 2.5
Voltage : 24 V AC/DC
