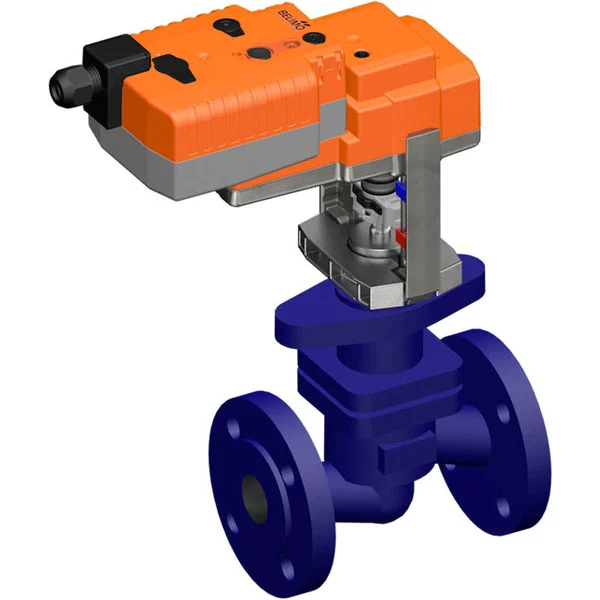

This is a 2-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 15 and the flange size is DN 15. The valve cone’s profile determines the equal percentage flow characteristic. The maximum pressure differential is 10 bar (145 psi). The valve can operate between 5 and 150 °C (41 to 302 °F). The Kv value of the valve is 1 m3/h, equivalent to a Cv-value of 1.16 gpm. The valves’s stroke length is 15 mm. The actuator requires a supply voltage of 24 V AC/DC. The actuator supports BACnet MSTP/Modbus RTU/MP-Bus communication protocols and provides precise position feedback in the range of 0-10 V or 2-10 V, ensuring accurate and responsive control in various applications. The actuator opens/closes the valve in 150 seconds. The actuator has an IP54 rating. The actuator is equipped with a fail-safe (NC/NO) feature that ensures safe operation in the event of a power failure.
The actuator, equipped with overload protection, doesn’t need limit switches and will stop automatically when the end stop is reached. Manual override is possible with a push-button, which disengages the gear train for as long as the button is pressed or locked. The stroke can be adjusted using a 4mm hexagon socket screw key inserted at the actuator’s top, with the stroke shaft extending when turned clockwise. The actuator can be directly mounted on the globe valve using form-fit hollow clamping jaws and it can be rotated 360° on the valve neck. The actuator moves the valve to the desired operating position simultaneously as the integrated capacitors charge. If the power supply is interrupted, the valve shifts to the chosen fail-safe position using the stored electrical energy. The actuator comes with an inbuilt interface for BACnet MSTP, Modbus RTU, and MP-Bus. It obtains the digital control signal from the control system and provides the present status. The default factory setting retracts the actuator stem. When shipping valve-actuator combinations, the motion direction is set based on the valve’s closing point. When actuator activated, the stroke direction switch alters the running direction during normal operation. The capacitor actuators require a pre-charging period to bring the capacitors to a usable voltage level. This ensures that, in case of a power failure, the actuator can move from its current position into the fail-safe position at any time. The rotary knob fail-safe position allows for adjustment of the preferred fail-safe position. The adjustment range is based on the actuator’s maximum stroke height. In case of power failure, the actuator moves to the chosen fail-safe position considering a factory set bridging time of 2 seconds. Post-factory delivery, the actuator is fully discharged and requires about 20 seconds of pre-charging before initial setup to attain the necessary voltage level in the capacitors.
Pros:
- The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
- This modulating actuator can position the valve anywhere between 0-90 degrees with a control signal of 0-10 V/2-10 V
- The actuator is equipped with a fail-safe feature
Specifications
Connection size : DN 15 Flange
Voltage : 24 V AC,24 V DC
Material : Cast iron
Seal material : EPDM
Control signal : BACnet MSTP,Modbus RTU,MP-Bus,2-10 V,0-10 V
Max pressure difference (bar) : 10
Closing pressure (bar) : 16
Operating time (s) : 150
Connection type : Flange
Ball valve feature : NC Normally closed,NO Normally open
Kv value [m3/h] : 1
Max temperature (°C) : 150
Min temperature (°C) : 5
Communications protocol : BACnet MSTP/Modbus RTU/MP-Bus
Material quality : Cast iron GG 25 (GJL-250)
Degree of protection (IP) : IP54
Manual override : Yes
Adjusting force (N) : 1000
Ground characteristic : Equal percentage
Safety function : NC Normally closed,NO Normally open
Adjustable operating range : Yes
Allowable relative humidity (%) : 0 % to 95 %
Ambient temperature (°C) : 0 °C to 50 °C
Flange compression class : PN 16
Max. electric power input (VA) : 6
Position reporting signal : 0-10 V/2-10 V
Surface protection : Coated
Transmission : With cogwheels
Degree of protection (NEMA) : 2
Energy consumption at rest (W) : 1.5
Energy consumption in operation (W) : 2.5
Stroke (mm) : 15
Voltage : 24 V AC/DC
