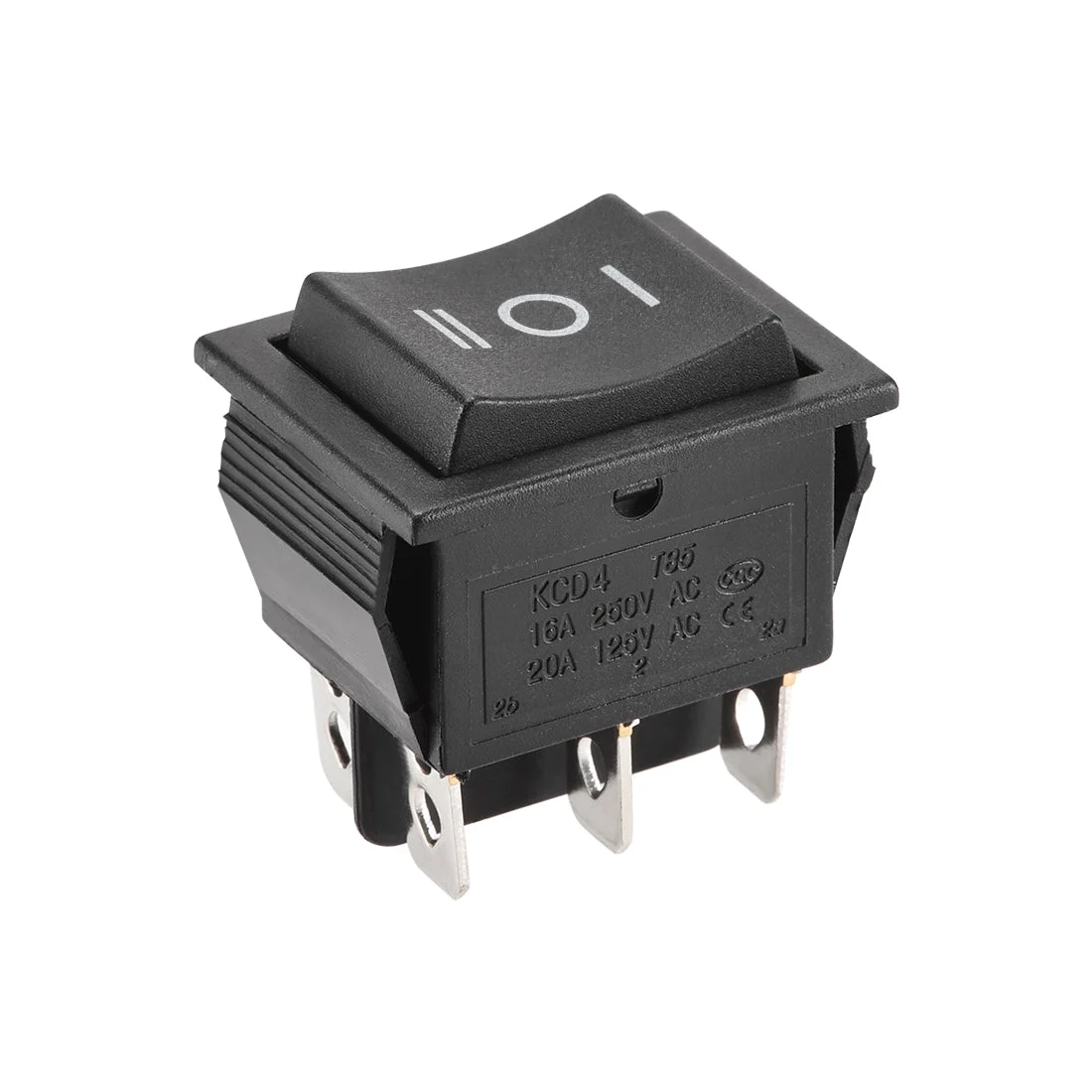

Boat Rocker Switch Toggle Switch 6 pins ON/OFF/ON AC 250V/16A 125V/20A 1pcs

About this item

• 【Wide Application】This mini rocker switch is widely used for various kinds of household appliances and DIY power control ,such as , boat, truck , panel DIY control, lights, water dispenser, generator, coffee pot, speaker,TV, and breadboard DIY power control.
• 【Product Specification】Terminals: 6；Position: 3-ON/OFF/ON；Rating Voltage: AC 250V/16A 125V/20A；Light Voltage: NO light include；Total Size ( size measuring do not include the Waterproof case):34*25*34mm（L*W*H)；Mounting Size: 33.5*21.4mm(L*W);Action Type: Latching
• 【Advantage】Flexible keys, high sensitivity, simple structure, side snap design, convenient and firm installation; The surface is insulated and flame retardant, with strong heat resistance, oxidation resistance and corrosion resistance.
• 【Quick-recognized Codes】Use the mark,”I – O – II”, to represent the 3 position of the switch. It is easy to recognize the positions in operation.
• 【Attention】Select the appropriate soldering iron to speed up the soldering. It is recommended to use 20W soldering iron to complete the soldering within 3 seconds. The flux must be in proper amount. When soldering, try to turn the switch pin down.

Description:

1.Universal for all buses, boats, marine, trailers,kitchen appliance etc.

2.Rocker Switch,6 terminals ON/OFF/ON switch, , longer life for use.

3.Product soldering precautions:

Any incorrect soldering operation may result the pin in deformation and poor switch contact. Be sure to pay attention to the following points when wiring:

Select the appropriate soldering iron to speed up the soldering. It is recommended to use 20W soldering iron to complete the soldering within 3 seconds. The flux must be in proper amount. When soldering, try to turn the switch pin down.

Specification:

Product Name:Rocker Switch

Terminals: 6

Position: 3-ON/OFF/ON

Rating Voltage: AC 250V/16A 125V/20A

Light Voltage: NO light include

Material: Plastic, Metal

Total Size:32.5*26*35mm(L*W*H)

Mounting Size: 26*21mm(L*W)

Action Type: Latching

Package Content :

1 x Rocker Switch
