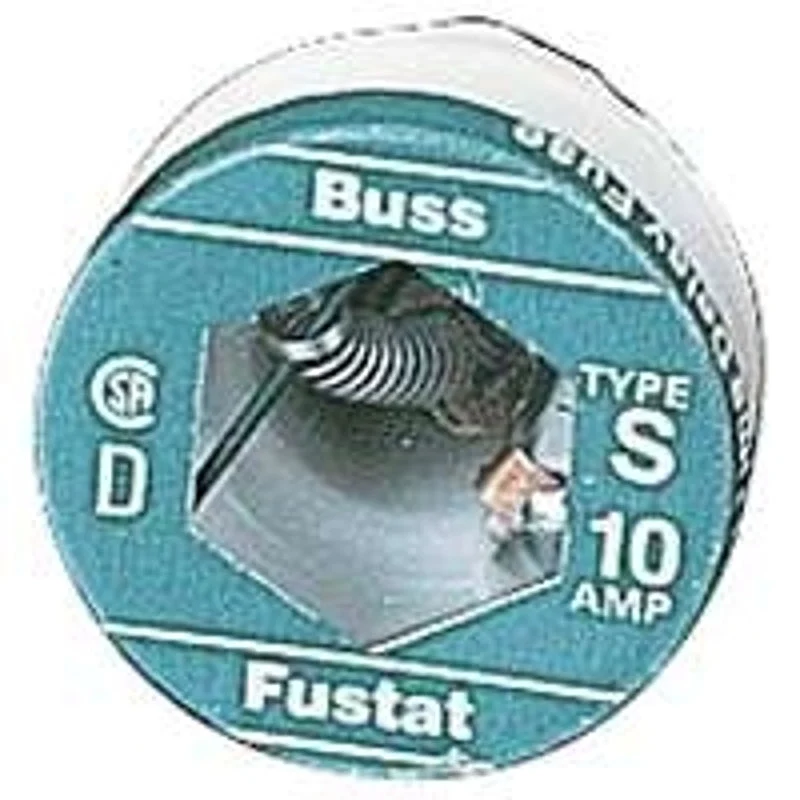

Heavy-duty. Protects critical motor circuits or motors that cycle On/Off frequently. Body sizes prevent interchangeability and dangerous over-fusing. Dual element design, industrial/commercial-grade, spring loaded to provide short circuit and overload protection. Non-transferring. Will thread into SA adapters. UL Listed. 125 V maximum. 10,000 AIR.
Unit: CD
UPC: 051712103220
Model Number: BP/S-10
Features
- Heavy-duty, dual-element, time delay rejection base fuse
- Use to protect critical motor circuits or motors that cycle On/Off frequently
- Non-interchangeable body
- An industrial or commercial-grade product with dual-element construction
- These fuses thread into SA adapters
- Industrial strength, featuring an exclusive dual-element construction
- This spring-loaded design provides excellent short circuit and overload protection
- More time delay than the medium-duty type SL fuses in order to better protect industrial motors and critical residential circuits
Additional Information
- Current Rating: 10 A
- Element Type: Dual
- Fuse Type: Low Voltage Time Delay
- Interrupt Rating: 10 kA
- Length: 6-1/2 in
- Rejection/Non-Rejection: Rejection
- Voltage Rating: 125 V
