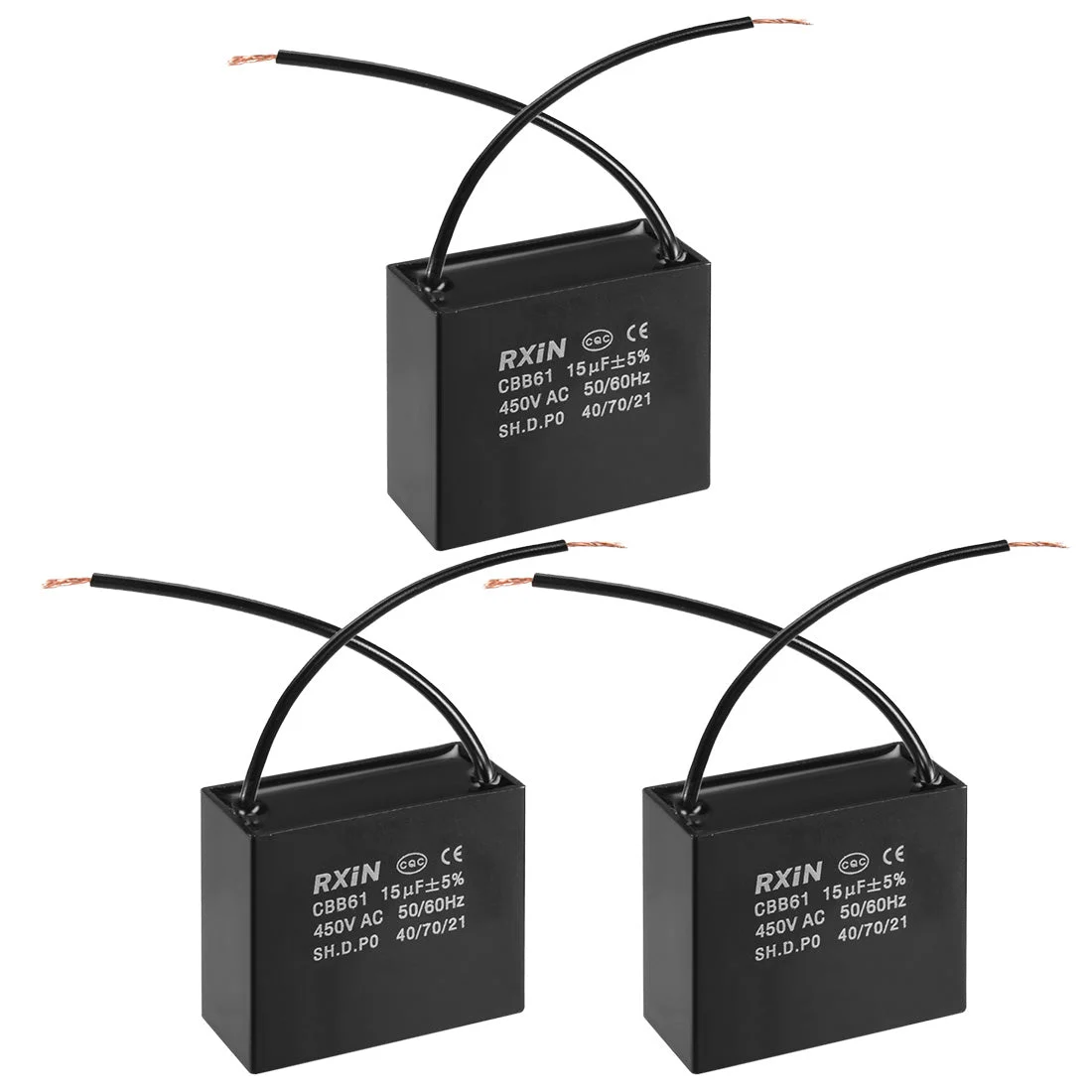

CBB61 Run Capacitor 450V AC 15uF 2 Wires Metallized Polypropylene Film Capacitors for Ceiling Fan 3pcs

About this item

• [Material] – Made of metallized polypropylene film sheet with plastic shell
• [Specification] -Rated Capacity: 15uF; Tolerance: ±5%; Rated Voltage: 450V AC; Cover Size: 58x28x50mm / 2.3×1.1x2inch; Rated Frequency: 50/60Hz; Temperature Range: 40/70/21
• [Working Environment] – This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system
• [Application] – The CBB61 capacitor is widely used for electric fan, range hood fan, air exchange fan, pump, motor, generator, etc
• [Note] – If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one

Features:
This CBB61 run capacitor has low loss, excellent electrical performance and long service life.
The CBB61 capacitor is widely used for electric fan, range hood fan, air exchange fan, pump, motor, generator, etc.
Note: If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one.
Specifications:
Model: CBB61
Material: Polypropylene Film
Rated Voltage: 450V AC
Rated Capacity: 15uF
Tolerance:±5%
Rated Frequency:50/60Hz
Lead End: 2 Wires
Size: 58*28*50mm
Climatic Category: 40/70/21
Operating Temperature Range: -40 ~70

Package Includes:
3 x 450V AC 15uF Capacitor
