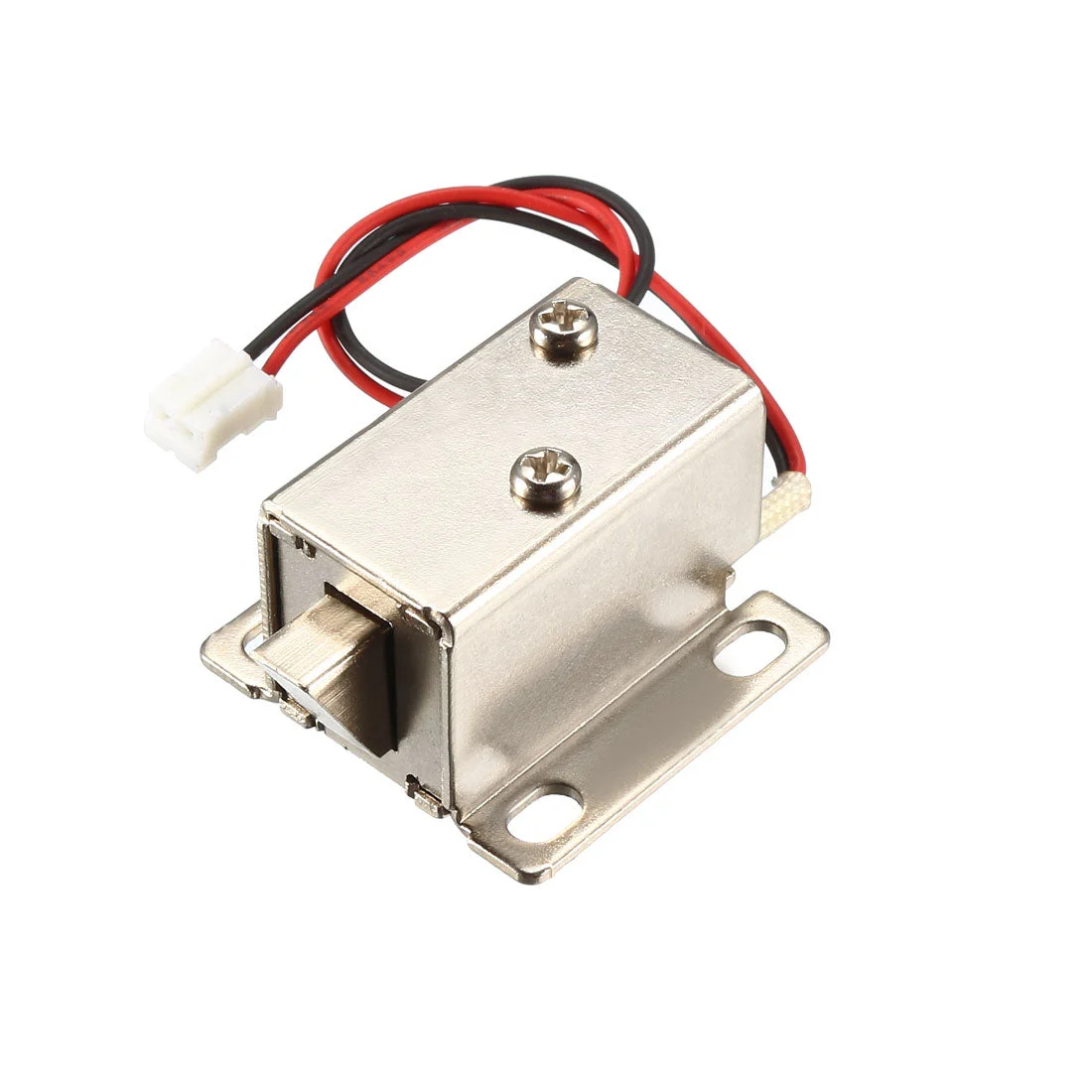

About this item
- Voltage & Current : DC12V 0.42A; Stroke & Force : 6mm, 80g
- Action Type: Push Pull; Energized Forms: Intermittent; Package Content : 1 x Electromagnet Solenoid Lock
- Easy to Install – It’s with simple structure,and it can save the energy and the time during the installation for you.
- With Low Use Cost – This electric lock use instantaneous power, can save power for you. So it can save money for you.
- Small Size and Light Weight – It just takes up a small space which is perfect lock to be used for the small box or small cabinets, such as deposit box, cabinets, safes etc.
Description:
– Easy to install for the electric door lock or other automatic door lock systems with the mounting board.
– Widely used for the cabinet lock,locker locks,file cabinet locks ,luggage locks,electric locks,door locks,solenoid locks,drawer,newspaper boxes lock ,sauna lock,locker electromagnetic.
Specification:
– Voltage & Current : DC12V 0.42A
– Stroke & Force : 6mm, 80g
– Action Type: Push Pull
– Energized Forms: Intermittent
– Lock Tongue Size: 6 x 5 x 10mm / 0.24 x 0.2 x 0.39 inch (L*W*H)
– Body Size: 27 x 28 x 19mm / 1.06 x 1.1 x 0.75 inch (L*W*H)
– Mounting Hole Size: 5 x 3mm / 0.2 x 0.1 2inch (L*W)
– Mounting Hole Distance: 18 x 21mm / 0.71 x 0.83 inch (L*W)
– Package Content : 1 x Electromagnet Solenoid Lock
Instructions for Use:
– When the circuits is charged, the lock tongue will pull back by 6mm and the door will be unlocked.
– After the circuits is powered off, the lock tongue will extend to lock the door.
– The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished.
– When it has been connected the wire and the current is available, the electric lock can control door’s opening and closing.
