About this item

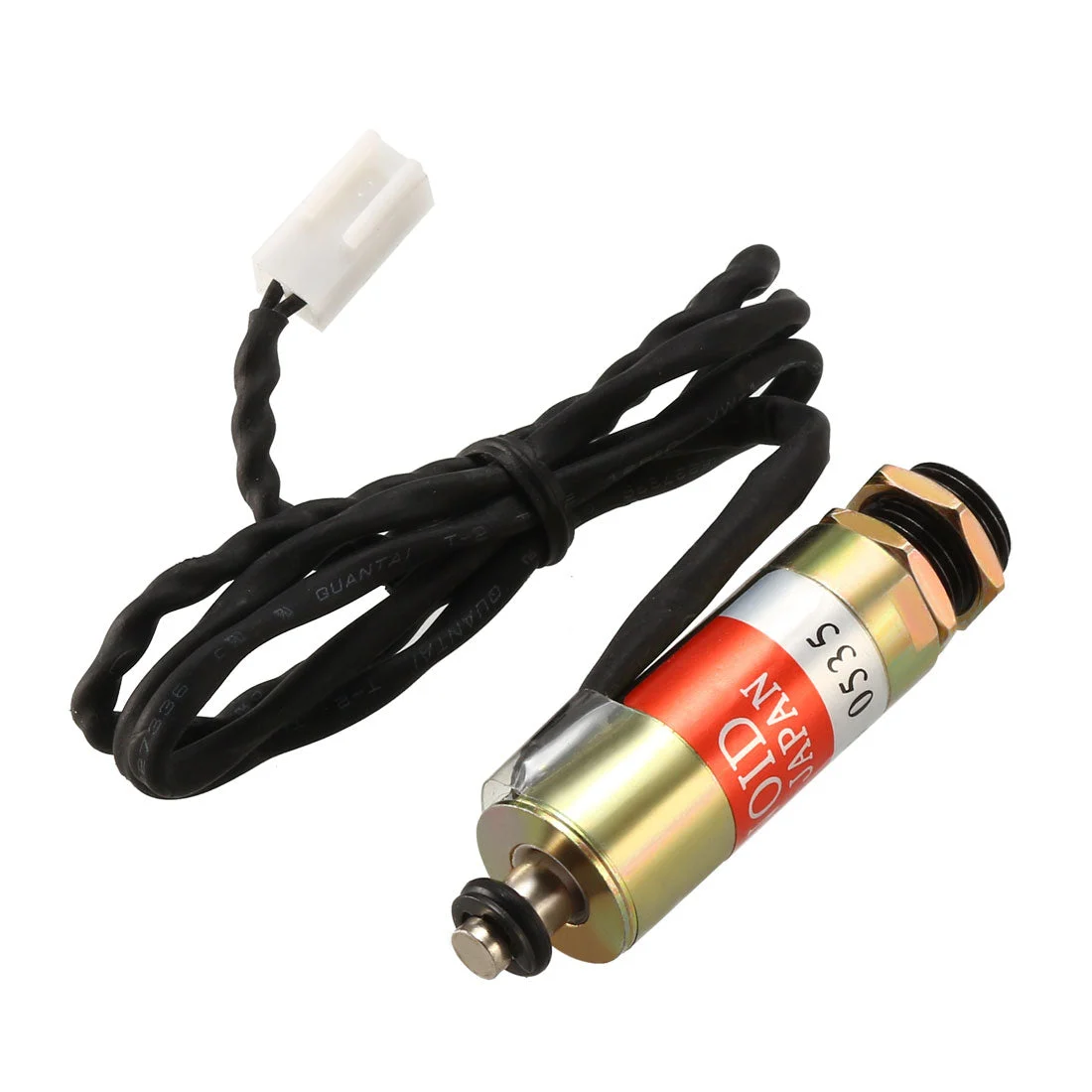

- 【FEATURE】- DC 24V 0.2kg Force 3.3mm Stroke Pull Push Type Tube Shape Solenoid Electromagnet
- 【GOOD DESIGN】- Push pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet. Less power consumption, low temperature rise, no magnetism when power off.
- 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity. It can be installed flexibly and quickly, which is very convenient.
- 【NOTED】- As an actuating element of equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 119 seconds.
- 【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.
Specification:
– Voltage & Current : DC24V 0.8A
– Stroke & Force : 3.3mm, 0.2kg
– Action Type: Push Pull
– Body Size: 51 x 13mm / 2 x 0.51 inch (L*D)
– Plunger Bar Dia: 5mm / 0.2 inch
– Thread Dia: M10
– Package Content : 1 x Electromagnet Solenoid
Instructions for Use:
– The red and black wires are the power cords of the electromagnetic, and the positive and negative electrodes are not distinguished.
