About this item
- Voltage & Current : DC24V 0.8A; Stroke & Force : 11.4mm, 350g

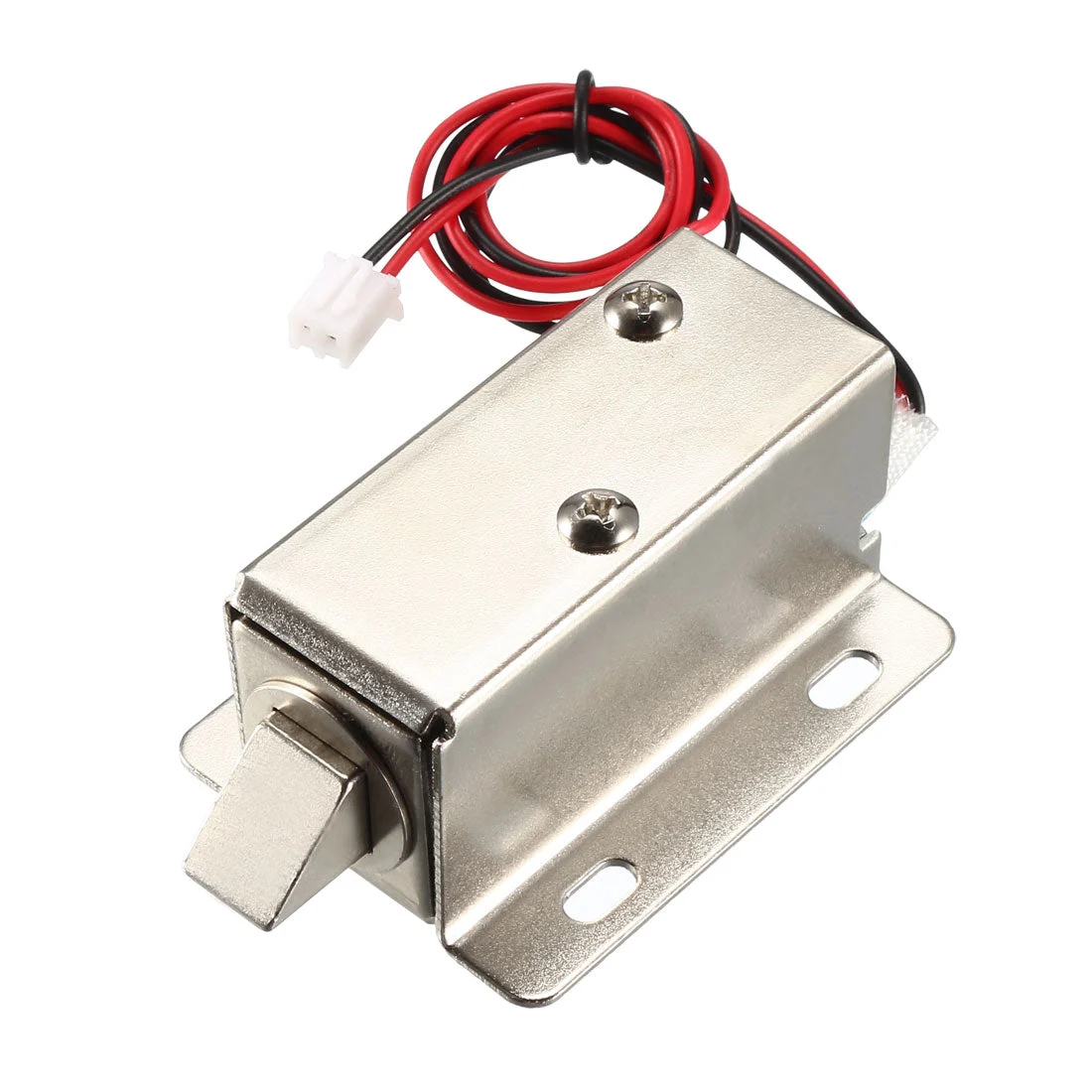

- Action Type: Push Pull; Energized Forms: Intermittent; Package Content : 1 x Electromagnet Solenoid Lock
- Easy to Install – It’s with simple structure,and it can save the energy and the time during the installation for you.
- With Low Use Cost – This electric lock use instantaneous power, can save power for you. So it can save money for you.
- Small Size and Light Weight – It just takes up a small space which is perfect lock to be used for the small box or small cabinets, such as deposit box, cabinets, safes etc.
Description:
– Easy to install for the electric door lock or other automatic door lock systems with the mounting board.
– Widely used for the cabinet lock,locker locks,file cabinet locks ,luggage locks,electric locks,door locks,solenoid locks,drawer,newspaper boxes lock ,sauna lock,locker electromagnetic.
Specification:
– Voltage & Current : DC24V 0.8A
– Stroke & Force : 11.4mm, 350g
– Action Type: Push Pull
– Energized Forms: Intermittent
– Lock Tongue Size: 11.4 x 10 x 10mm / 0.45 x 0.39 x 0.39inch (L*W*H)
– Body Size: 54 x 42 x 30mm / 2.13 x 1.65 x 1.18inch (L*W*H)
– Mounting Hole Size: 7 x 3.5mm / 0.28 x 0.14 inch (L*W)
– Mounting Hole Distance: 30 x 32mm / 1.18 x 1.26 inch (L*W)
– Package Content : 1 x Electromagnet Solenoid Lock
Instructions for Use:
– When the circuits is charged, the lock tongue will pull back by 11.4mm and the door will be unlocked.
– After the circuits is powered off, the lock tongue will extend to lock the door.
– The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished.
– When it has been connected the wire and the current is available, the electric lock can control door’s opening and closing.
