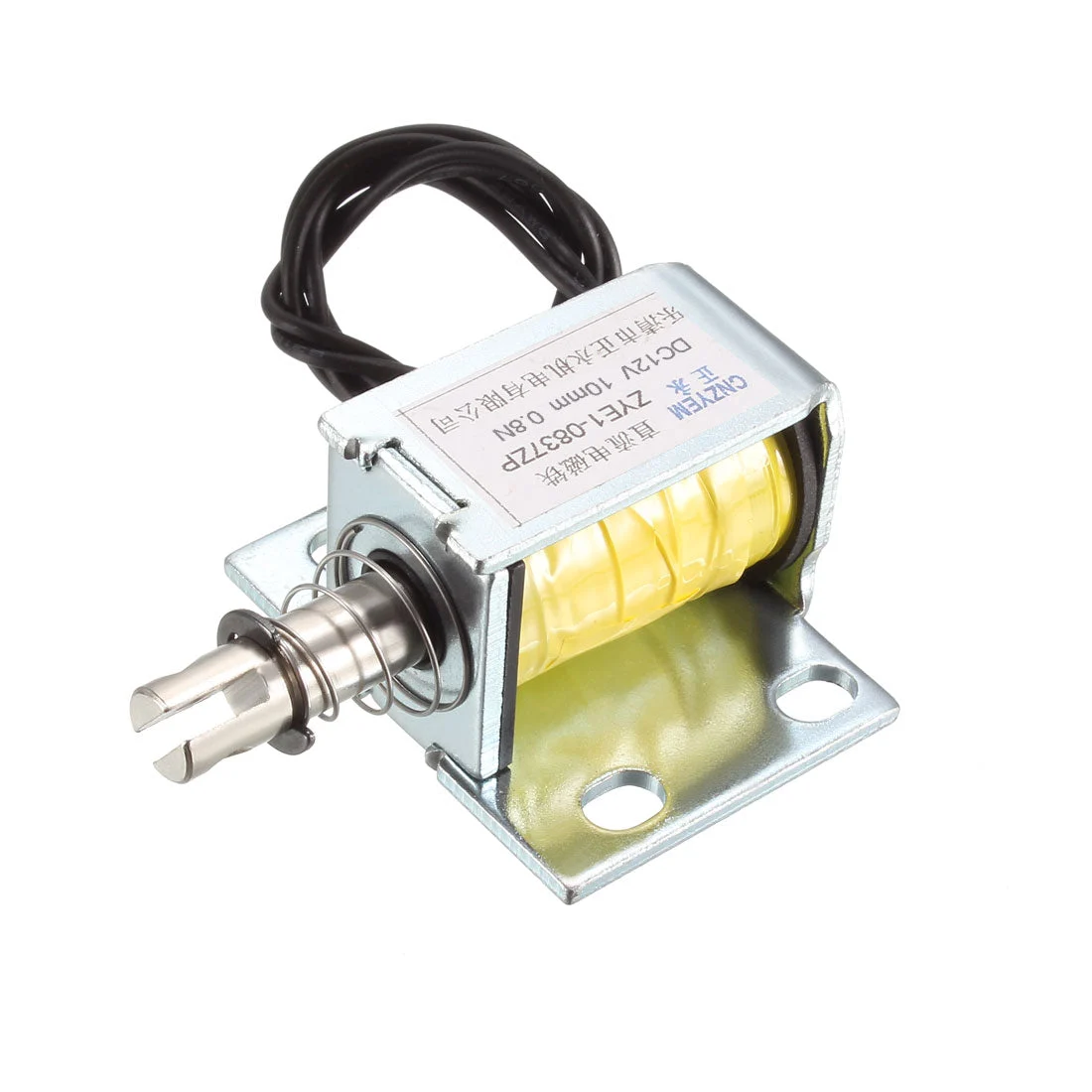

About this item
- Voltage : DC 12V; Current : 1.5A; Power : 18W; Stroke : 10mm; Force: 0.8N
- Action Form : Push Pull Type; Package Content : 1 x DC Push Pull Type Solenoid Electromagnet
- DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.
- Support DC 12V voltage, linear motion, is easy to install.
- Push Pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.
Description:
– Push Pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.
– Support DC 12V voltage, linear motion, is easy to install.
– DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.
Specification:
– Voltage & Current : DC12V 1.5A
– Power : 18W
– Action Type: Push Pull
– Stroke & Force : 10mm, 0.8N
– Wire Length: 21cm / 8.27inch
– Plunger Bar Dia: 8mm / 0.31inch
– Body Size : 37mm x 45mm x 27mm / 1.46inch x 1.77inch x 1.06inch (L*W*H)
– Mounting Hole Size: 7mm x 5mm / 0.28inch x 0.2inch (L*W)
– Mounting Hole Distance: 35m x 20mm / 1.38inch x 0.79inch (L*W)
– Package Content : 1 x DC Push Pull Type Solenoid Electromagnet
Note:
– Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.
– Please take the electromagnet put down gently when you install it. This product is small in size, please pay attention to in the process of using electricity.
