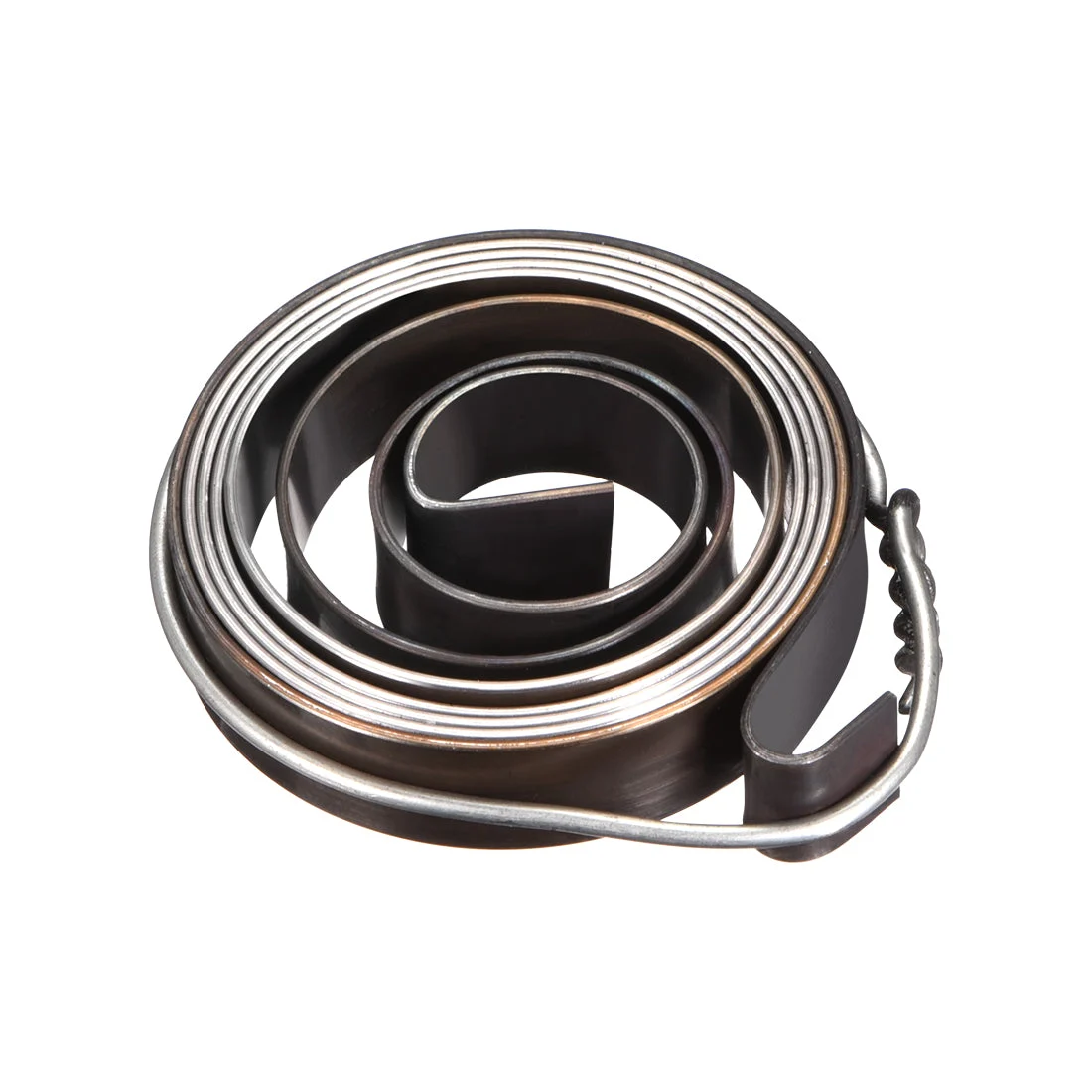

Drill Press Spring Quill Feed Return Coil Spring Blackening 680mm 34x8x0.8mm

About this item

• Expand Length : 680mm/26.8inch ; Spring OD : 34mm ; Material Width : 8mm ; Material Thickness : 0.8mm
• Inner Mounting Type : Hook; Outer Mounting Type : Hook
• This is the chrome housed spring that returns the quill to the top after you have completed drilling.Used to all kinds of vacuum cleaner coil spring, volume tube coil spring, safe coil spring and so on
• Chemical Blackening, the performance of the product form oxide film, isolate the air, prevent rust
• Pay attention to safe when installing springs. Do not loosen the wire of fixed springs!

Specification:

Material: Spring Steel (60Si2Mn)

Finish: Chemical Blackening

Material Thickness: 0.8mm

Material Width: 8mm

Spring OD : 34mm

Expand Length : 680mm/26.8inch

Inner Mounting Type : Hook

Outer Mounting Type : Hook

Package Content :

1 x Drill Press Spring

Description:

1.The drill press quill return spring is good replacement for many existing quill spring drill presses, this is the chrome housed spring that returns the quill to the top after you have completed drilling.Used to all kinds of vacuum cleaner coil spring, volume tube coil spring, safe coil spring and so on.

2.Chemical Blackening, the performance of the product form oxide film, isolate the air, prevent rust.

3.Pay attention to safe when installing springs. Do not loosen the wire of fixed springs! When installing, install the spring with a fixed wire directly into the spring , and the wire will slide out.
