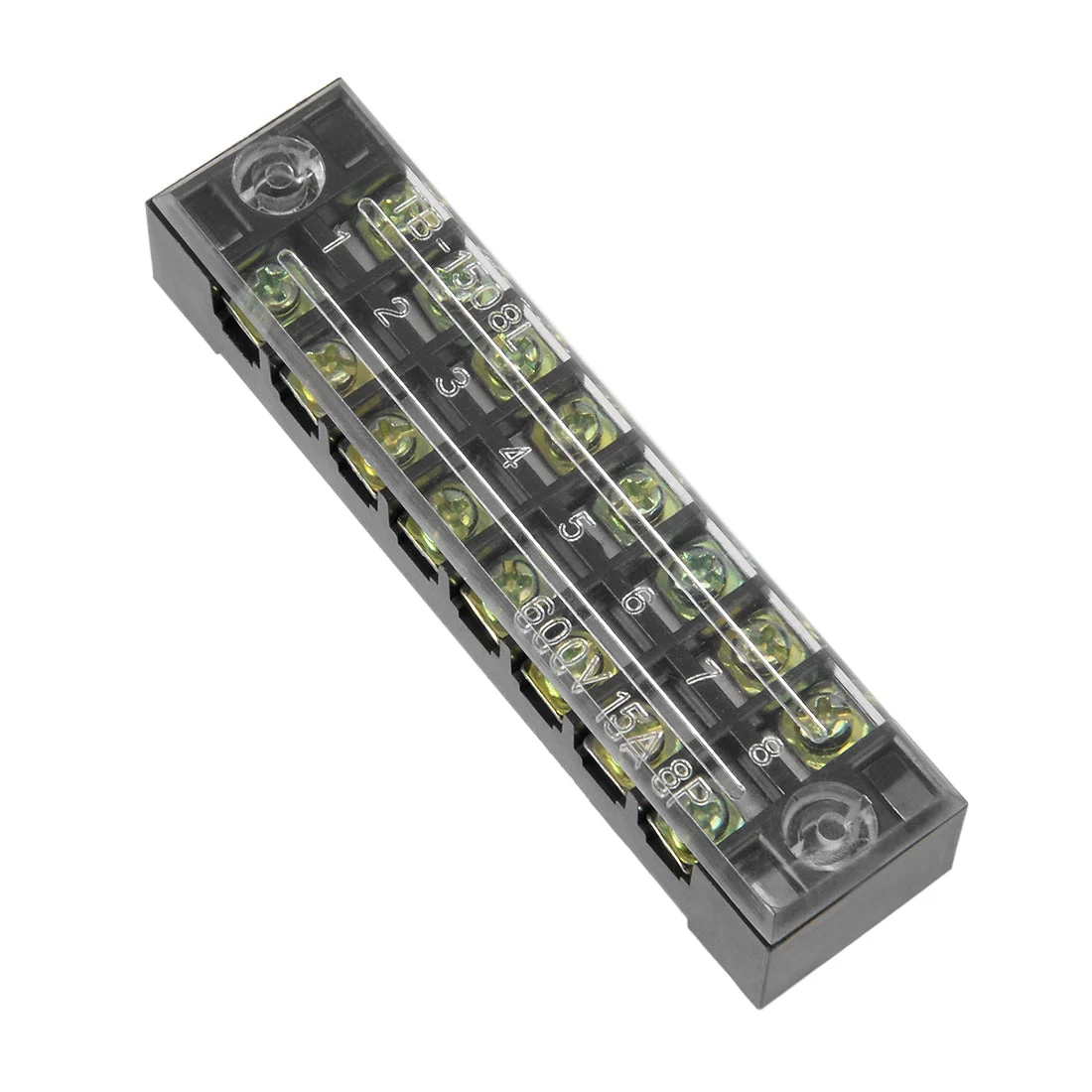

Dual Rows 8 Positions 600V 15A Cable Barrier Block Terminal Strip TB-1508L

About this item

• Rated Value: 600V 15A; Poles: 8 Position, Dual Row; Terminal Quantity: 16.
• Removable clear plastic insulating cover prevents accidental contact the terminals.
• Each pair of terminals is insulated from the next, prevent circuit in trouble.
• Used for wires connecting of home appliances, electronic circuits, machines, etc.
• Package Content: 1 x 600V 15A 8 Position Double Row Barrier Block Terminal.

Description:
1. Double rows and with removable clear plastic insulating cover.
2. Each pair of terminals is insulated from the next, prevent circuit in trouble.
3. The set screws secure wires reliable contact and help prevent accidental contact with the terminals.
4. Used for wires connecting of home appliances, electronic circuits, machines, etc.
5. One mounting hole each end for fixed mounting, easy to install.
Specifications:
Product Name: 8 Positions Barrier Terminal Block
Maximum Rated Voltage: 600V
Maximum Rated Current: 15A
Poles: 8 Positions (Dual Row)
Size: 3.54 inch(L) x 0.87 inch(W) x 0.67 inch(H)
Model: TB-1508L
Colour: Black
Weight: 34g
Package Inculde:
1 x Barrier Terminal Block
