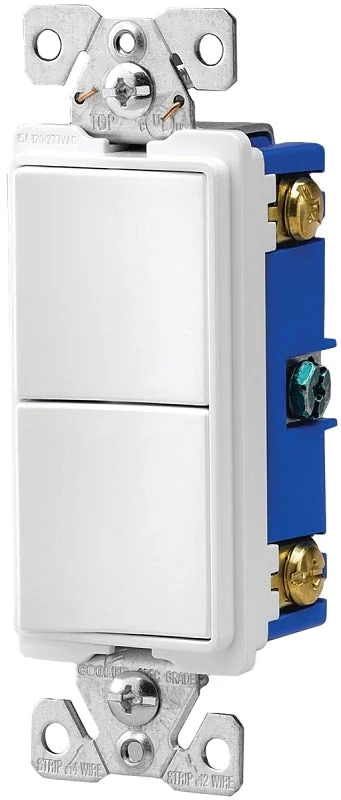

High-impact-resistant thermoplastic rocker, top and back body. Injection molded housings and PVC resin, comply with UL94 V0 flammability ratings. Tri-combo screw heads, built-in wire stripper. Backwire clamps on side terminals for installation of #12 and #14 wire. Terminal screws are backed out for easier and faster wiring. Thick (0.045 in/1.14 mm) steel mounting strap is zinc-plated. Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used. 120/277 VAC, 15 A rocker switches with break-off provision for wiring both devices on the same circuit or on separate circuits. UL, cUL listed and NOM 426 rated.
Features
- Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
- Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- Steel mounting strap is zinc-plated for added corrosion resistance
- Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Break-off provision for wiring both devices on same circuit or on separate circuits
- Decorator design features easy, smooth actuation of the rocker
Additional Information
- Color: White
- Contact Configuration: SPST
- Current Rating: 15 A
- Dimensions: 4.19 in L x 1.3 in W x 1.08 in D
- Housing Material: Thermoplastic
- Mounting Type: Strap
- Temperature Rating: -20 to 60 deg C
- Terminal Type: Lead Wire
- Voltage Rating: 120/277 V
