About this item

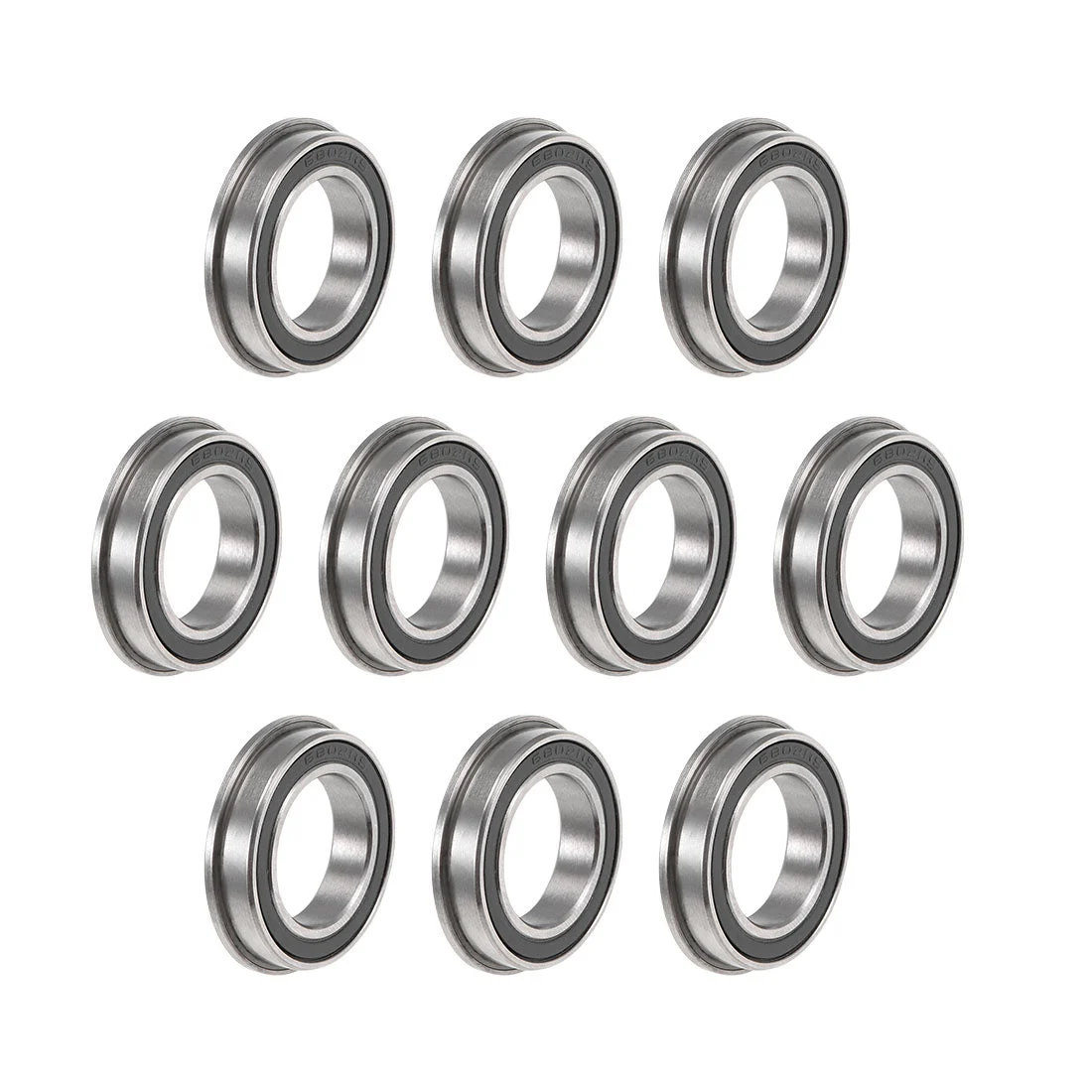

- [Size] – F6802-2RS ABEC1 bearing (I.D.=15mm, O.D.=24mm, Thickness=5mm, Flange Dia: 26mm).
- [Durable] – Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings’ service life.
- [Easy to Maintain] – Shields on Both sides to keep lubricant in. Z1 noise level for most general use.
- [Application] – Commonly used for glider/rocker arms, wheels of the cart, lawnmowers, printers, pumps, motors, gearboxes, reducer, textile machinery, electronic equipment, and more.
- [Note] – Keep the bearing working environment clean and bearing lubricated in time.
Note:
Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.
Description:
- Single-row, pre-lubricated, normal accuracy.
- Deep Groove Ball Bearings are one of the most widely used rolling bearings.
- With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
- Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
- Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
Selection Guide:
Shields (Designation Suffix Z/ZZ) – High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) – Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
Specification:
Model: F6802-2RS
Seal Type: Double Sealed
Inner Race/Outer Race Material: Chrome Steel (GCr15)
Cage Material: Stamping Steel
Inner Diameter (d): 15mm
Outer Diameter (D): 24mm
Thickness (B): 5mm
Flange Dia.: 26mm
Flange Thickness: 1.1mm
Dynamic Load Rating (Cr): 2.1kN
Static Load Rating (Cor): 1.3kN
Accuracy Class: P0 (ABEC1)
Noise Level: Z1
Number of Pack: 10 Pcs
