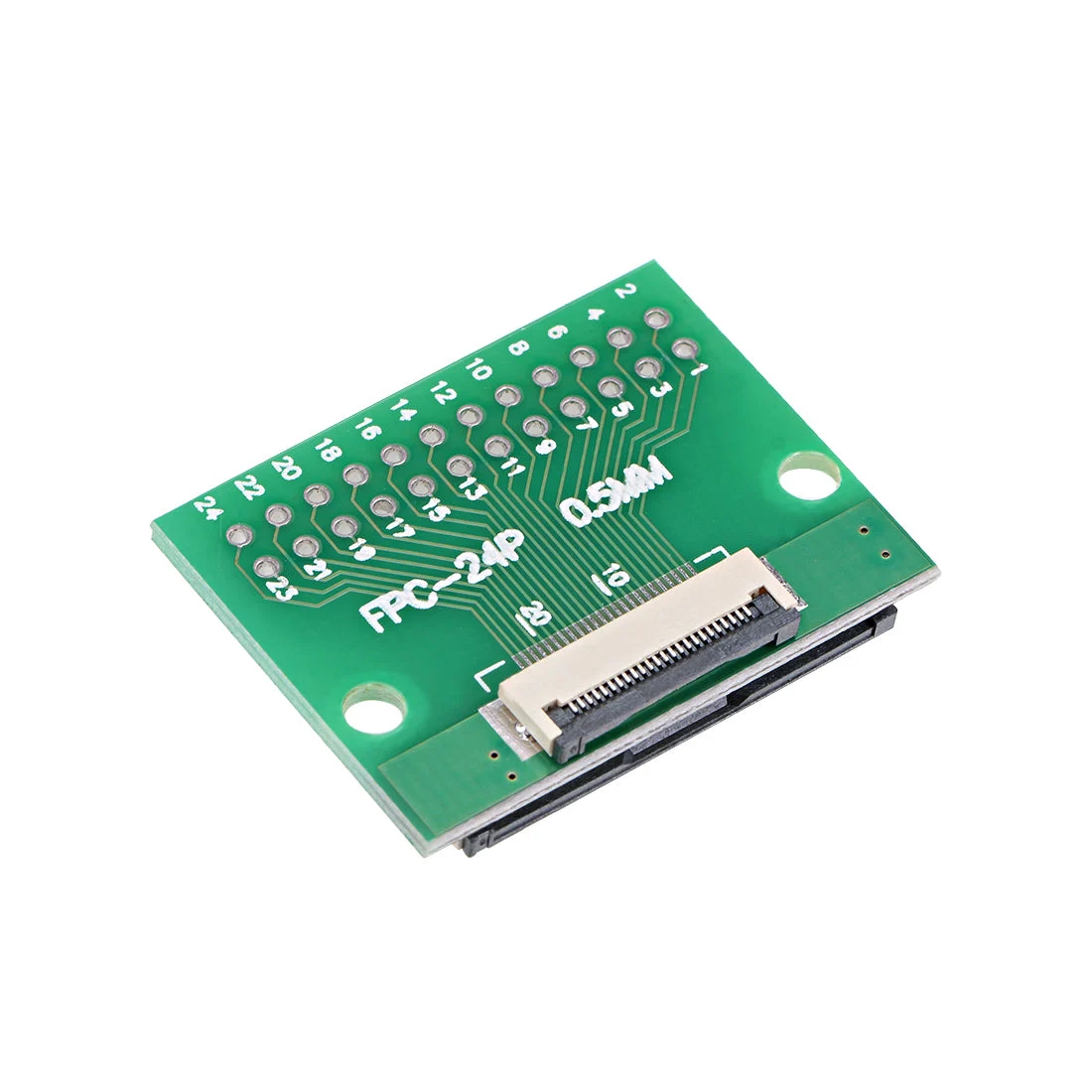

FFC FPC 24 Pin 0.5mm 1mm Pitch to DIP 2.0mm PCB Converter Board Couple Extend Adapter

About this item

• [Specification]: Flexible flat cable FFC FPC connector adapter 24 Pin 0.5 mm and 1mm to 2.0mm 24 Pin through hole DIP PCB converter
• [Feature]: FPC extension Board PCB support,both sides of the flip-up interface, one to one extension extension
• [Package]:1 x 24 Pin FFC cable adapter to 24 DIP adapter PCB board
• [Type]:Spacing 0.5mm and 1mm, any 24Pin below, pitch 0.5mm and 1mm FFC cable can be applied.
• [Application]:Applying to digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, etc.

Description:

1.These PCB circuit board adapters for FPC/FFC IC package with exposed pad

2.The PCB board has two sides, One side for pin pitch size 0.5mm pitch and 24Pin, other is 1.0mm pitch 24Pin.

3.Applying to digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, etc.

Specification:

Pins: 24 Pins

Product type: PCB Support

FPC Connector Pitch: 0.5 mm, 1mm

Total Size: 26 x 34 x 6mm/1.02 x 1.34 x 0.24inch (LxWxH)

Package Content :

Package Content:1 x 24 Pin FFC Cable Adapter to 24 DIP Adapter PCB Board
