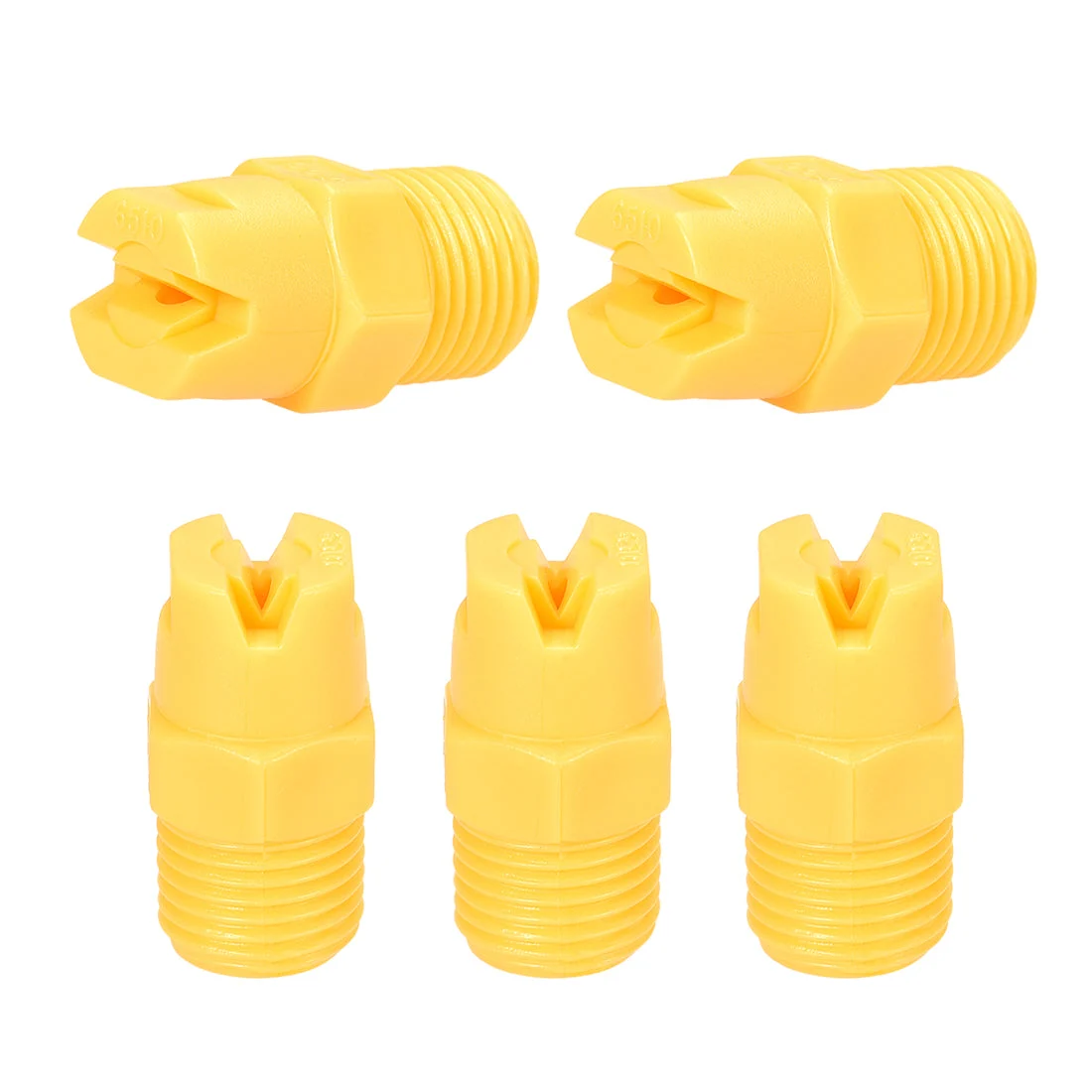

Flat Fan Spray Tip, 1/4BSPT Male Thread PP Nozzle, 5 Pcs (65 Degree, 2mm Orifice Diameter)

About this item

• [TECHNICAL PARAMETERS] – 1/4BSPT Male Thread Fitting, orifice diameter is 2mm, spray angle is 65 degree.
• [WIDELY USED] – Suitable for cleaning, spraying, cooling, dust removal, etc.
• [TOTAL SIZE] – 0.51″ (13mm) hex width, 0.98″ (25mm) long.
• [MATERIAL] – Made of pp, light weight, non-toxic and high heat resistance.
• [Features] – Flat fan spray pattern with even spray distribution and medium droplet size.

– Made of Plastic PP, light weight and high heat resistance.

– 1/4 BSPT male thread, you can screw this spray tip directly onto a pipe.

– These nozzles produce an even flat fan spray pattern and feature 65 degree spray angles.

– The pre-orifice design of the Nozzles provide larger droplets that result in less drift, while providing a more precise flow and distribution pattern.

– The Flat Fan Spray Tip is commonly found in industrial and washing applications, but they can also be used for agricultural and landscaping applications.

Specification:

Material: PP

Thread Size: 1/4 BSPT

Spray angle: 65 Degree

Orifice Diameter: 2mm / 0.08″

Total Size: 13mm x 25mm / 0.51″ x 0.98″ (Hex.Width*L)

Package Content:

5 x Nozzles
