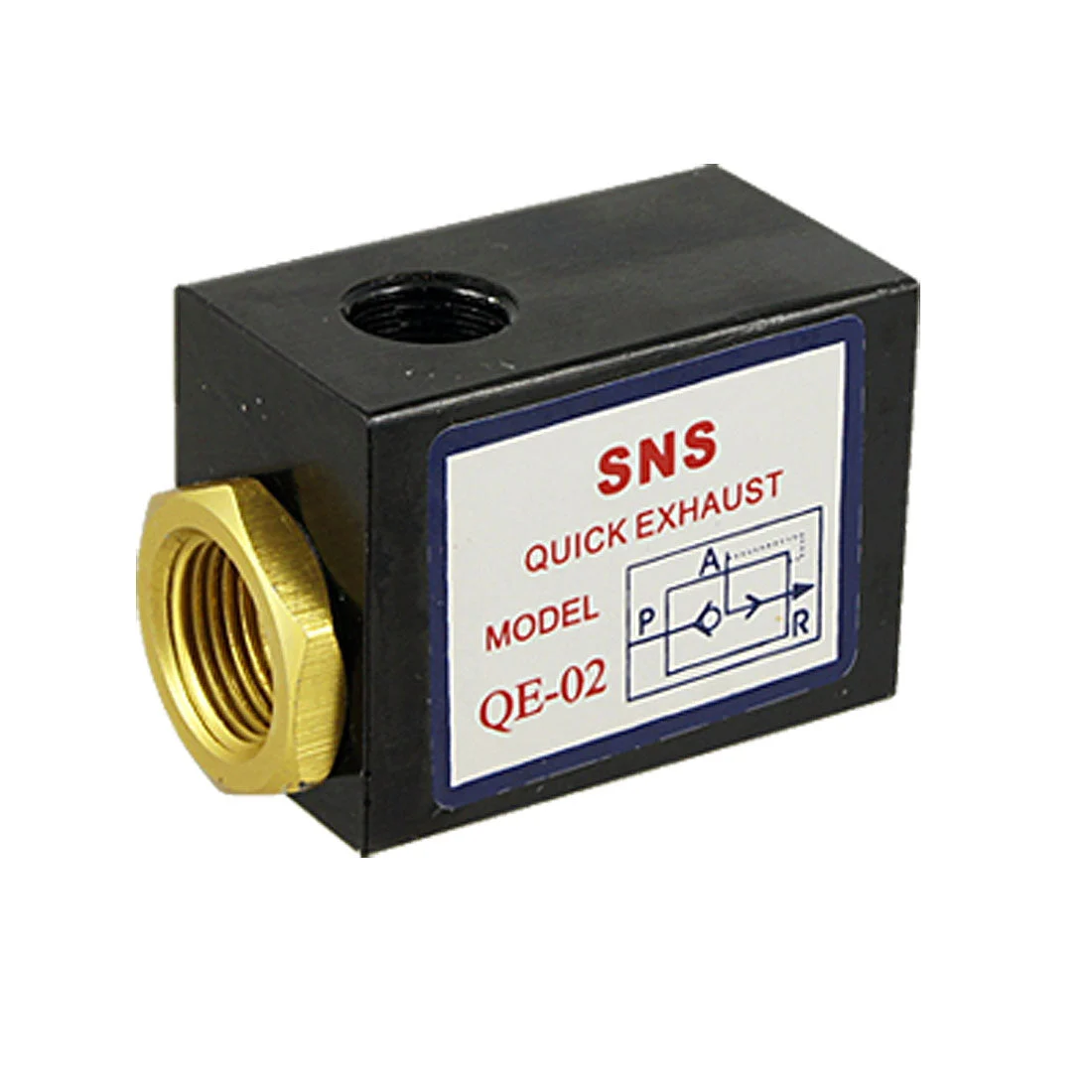

G1/4″ Pipe One Way Flow Pneumatic Exhaust Control Valve QE-02

About this item

• Product Name : Quick Exhaust Valve;Model : QE-02;Power : Pneumatic;Working medium : Air
• Flow Direction : One Way;Joint Pipe Bore Size : G 1/4”;Thread Diameter : 15mm/0.59” (Max.), 11.5mm/0.45” (Min.)
• Effective Section Area: 27.5 mm2; Working pressure: 0.1 ~ 1.0Mpa; Working temperature: 0~60 oC
• Total Size:5.4 x 2.7 x 3.5cm/2.1” x 1.1” x 1.4” (L*W*H); Material: Metal
• Color : Black; Net Weight : 107g; Package Content : 1 x Exhaust Valve

It is a basic element for changing air flow direction in pneumatic system.The gas directly through the exhaust valve quickly exhaust,cylindertoachieve rewind action. Can avoid the pneumatic system from damage and reduce thermal effect.
