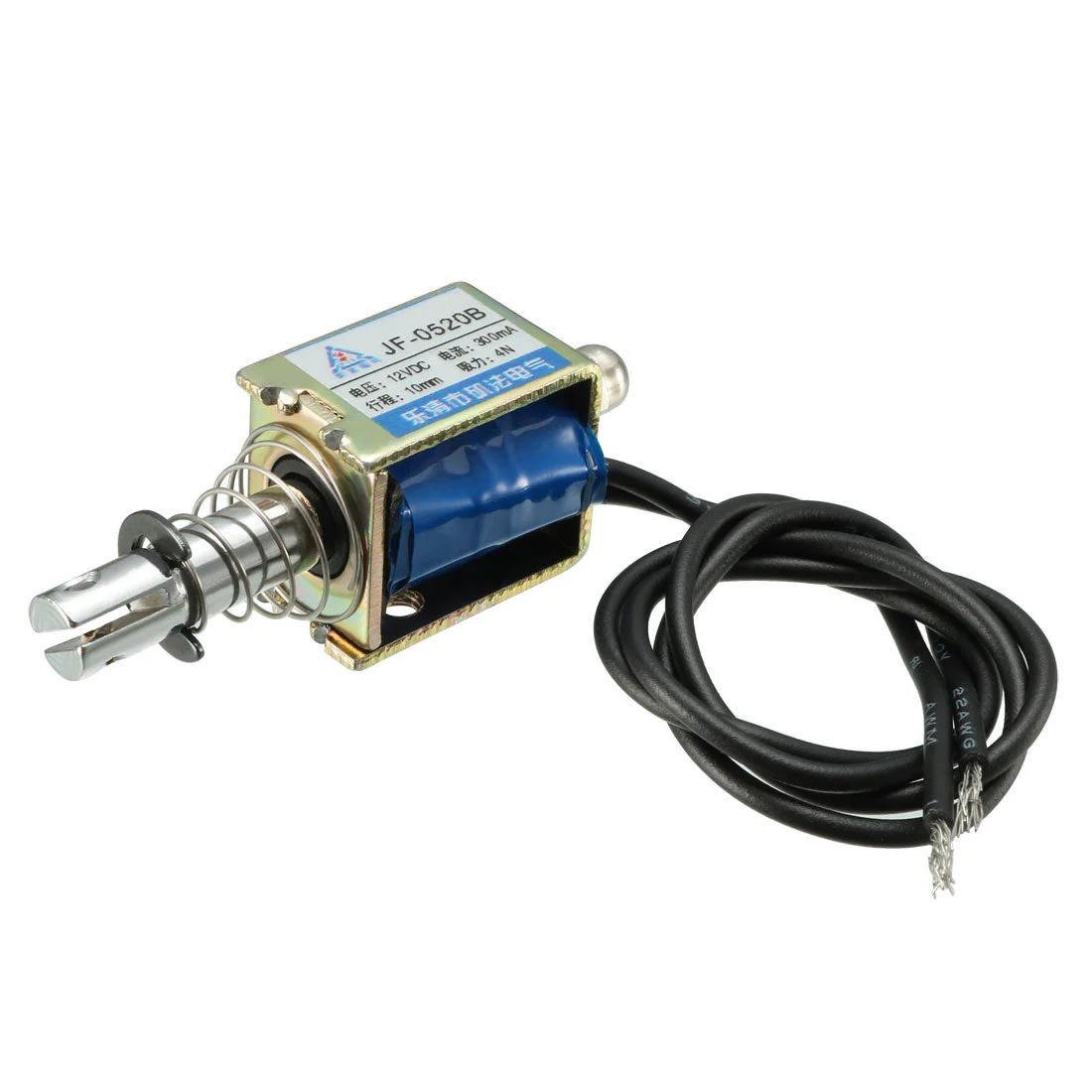

JF-0520B DC 12V 300mA 3.6W 4N 10mm Pull Push Type Linear Motion Solenoid Electromagnet

About this item

• 【FEATURE】- DC 12V 300mA 3.6W 4N Force 10mm Stroke Push Pull Solenoid Electromagnet
• 【GOOD DESIGN】- Push pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet. Less power consumption, low temperature rise, no magnetism when power off.
• 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity. It can be installed flexibly and quickly, which is very convenient.
• 【NOTED】- As an actuating element of equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 22 seconds.
• 【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.

Description:
1.Push pull Type, linear motion, plunger spring return, DC solenoid electromagnet.
2.Support DC 12V voltage, high power, pull push type, linear motion, is easy to install.
3.DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.
Specification:
Material :Metal
Force: 4N;
Travel: 10mm
Rated Voltage: DC 12V ;
Current: 300mA;
Power: 3.6W;
Cable Length: 190mm/7.48″;
Total Length: 47mm/1.85″;
Push Bar Dia: 6mm/0.24″;
Mounting Hole Dia.: M3
Size: 20 x 13 x 16mm/0.79″ x 0.51″ x 0.63″(L*W*H)
Package Content:
1 x DC Solenoid Electromagnet

Note:
Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.
Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using eelectricity, so as not to mar the electromagnet.
